V Type Air-cooled Condenser
Date:2020-06-16 Click:367 Share to:

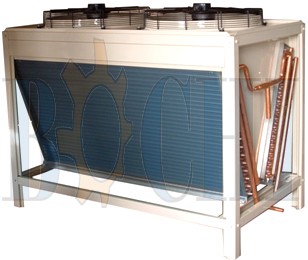

V Type Air-cooled Condenser
| Model | Nominal Put Heat (KW) |
Heat Exchange Area(m2) | Overall Dimension | Fan Power |
| BMMAEFHVC-001 | 30 | 100 | 1375×770×1450 | 330W/6P×2 |
| BMMAEFHVC-002 | 45 | 150 | 1740×845×1450 | 550W/8P×2 |
| BMMAEFHVC-003 | 60 | 200 | 1872×1040×1600 | 550W/8P×2 |
| BMMAEFHVC-004 | 75 | 250 | 2285×1040×1600 | 750W/6P×2 |
| BMMAEFHVC-005 | 90 | 300 | 2700×1040×1600 | 550W/8P×3 |
| BMMAEFHVC-006 | 120 | 400 | 3540×1040×1600 | 550W/8P×4 |
| BMMAEFHVC-007 | 150 | 500 | 4340×1040×1600 | 550W/8P×5 |
| BMMAEFHVC-008 | 180 | 600 | 2700×2080×1600 | 550W/8P×6 |
| BMMAEFHVC-009 | 300 | 1000 | 4340×2080×1600 | 550W/8P×10 |
| BMMAEFHVC-010 | 600 | 2000 | 4340×4160×1600 | 550W/8P×20 |
