Vertical Type Condenser

Share to:

    • Vertical Type Condenser
    Vertical Type Condenser

    Vertical Type Condenser
    Vertical Type Condenser

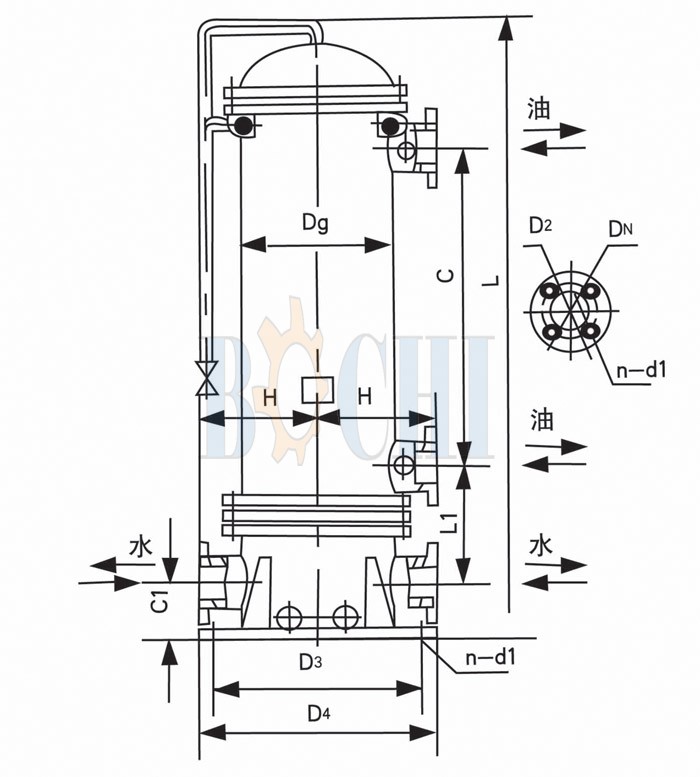

    Model

    		 L C L1 C1 H D1 D2 D3 DN D4 N-D1 N-D2 WEIGHT(kg)
    BMMAVTCOO1 2610 1692 470 150 315 426 640 590 80 160 6-Φ30 8-Φ17.5 735
    BMMAVTCOO2 2880 1962 805
    BMMAVTCOO3 3120 2202 100 180 855
    BMMAVTCOO4 3390 2472 940
    BMMAVTCOO5 3930 3012 1065
    BMMAVTCOO6 3255 2015 705 235 500 616 1075 1015 125 210 6-Φ40 8-Φ22 1670
    BMMAVTCOO7 3855 2615 1945
    BMMAVTCOO8 4455 3215 150 240 2220
    BMMAVTCOO9 3320 2010 715 602 820 1210 1150 2770
    BMMAVTCOO10 3970 2660 200 295 3340
