Application:

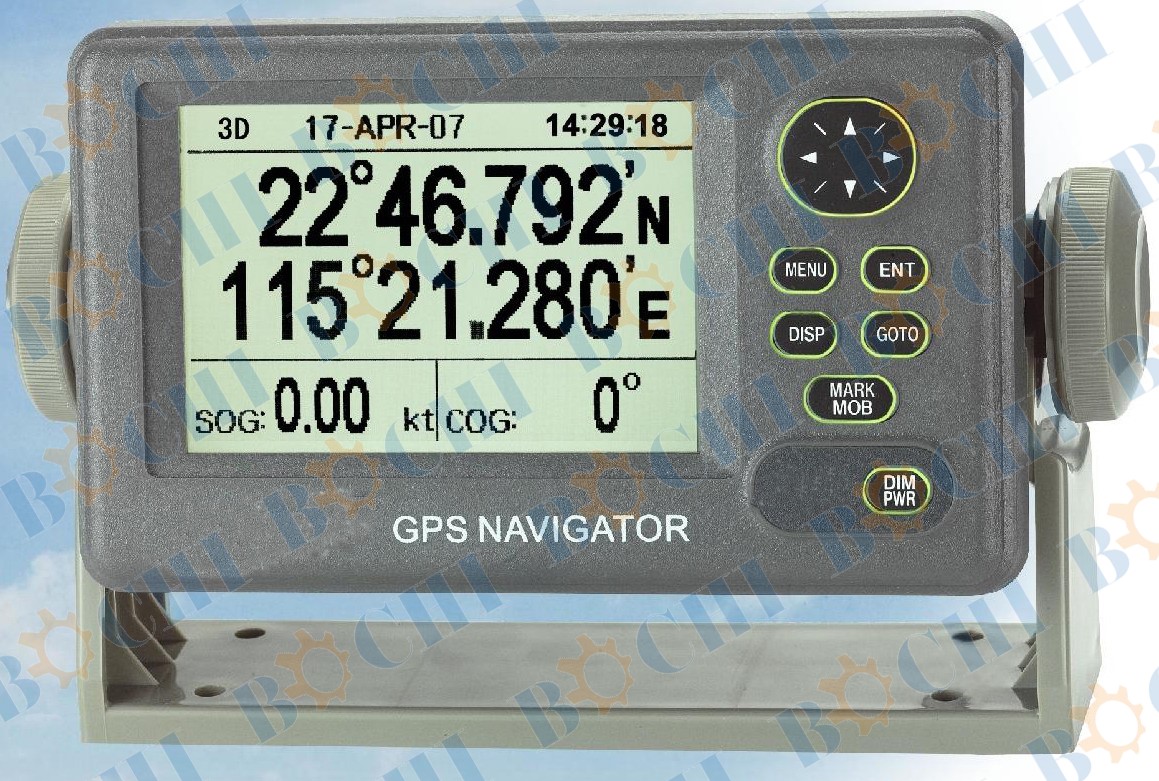

BMMEEGPS-005 is a specially designed for fishing boat, yacht design with SBAS receiver GPS navigator. It is compact, light,
but very precisely correct position, accurate to 15 meters.
In SBAS mode start can be accurate to 3 meters. Has a very high price.
Model:
Function description:
1. 4.8 inch silver liquid crystal display (LCD)
2. diverse display mode and can be used for a variety of navigation requirements
3. can store 999 way point, fifty route and 2500 track point
4. a key type way point input
5. users to track memory function storage waypoint for homing, waypoint spacing can be set by the user to
6. way point and line can upload download RS - 232 - c port
Main parameters:
Type
|
BMMEEGPS-005
|
Display
|
4.5 inch silver liquid crystal display (LCD)
|
Precision
|
GPS 15 meters (95%) SBAS 3 meters (95%)
|
Waterproof
|
Display: IPX5 antenna: IPX6
|
Environment temperature
|
Display: - 15 ℃ to 55 ℃ + 25 ℃ antenna: - to + 70 ℃
|
Power
|
12 ~ 24 VDC, 240 ~ 120 ma
|
Receiver category
|
GPS: full visual channel 12 parallel processing, C/A code, SBAS receiver
|
Receiver frequency
|
L1 (1575.42 MHz)
|
First positioning time
|
Average 15 seconds (hot boot)
|
Tracking speed
|
999 kt
|
The world coordinate system
|
WGS - 84.
|
Diagonal
|
95 (width) x 63 mm (high) LCD
|
Pixel lattice
|
240 x 160
|
Display mode
|
Drawing, highways, steering, odometer, navigation material, 2 personalized navigation display
|
Memory capacity
|
2500 track points, 999 route point additional comments, fifty route, each route can have 30 way point
|
Alarm
|
Arrived, anchor area monitoring, yaw, speed, time, distance, odometer
|
Language
|
English, Spanish, French, German, Dutch, Italian, Portuguese, Vietnamese, Indonesia wen, Chinese and Thai
|
Interface
|
Output (NMEA 0183 ver 2.0) AAM, APB, BOD, BWC, GGA, GLL. RMB, RMC, VTG, XTE, ZDA
|
Equipment list
Display the built-in SBAS receiver
|
KA - antenna even ten meters cable
|
Installation components and spare parts
|
|
|
