Application:

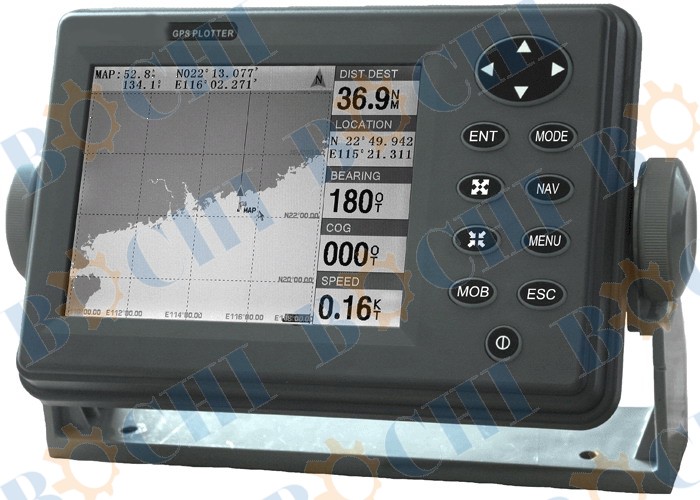

BMMEEGPS-006 is one of the BMMEEGPS series product, the product adopts full seal waterproof design, resistance to bad environment,
positioning rapid. The kernel are use ARM9 processor, graphic display speed fast, software powerful, operation design professional
reasonable use convenient. Built-in large capacity map storage space, navigation intuitive accurate.
Model:
Function description:
1. The TFT LCD display, wide temperature, wide Angle of view, the sun can also clearly visible.
2. The latest edition of navigation map, navigational information rich, accurate
3. Special tide table and sunrise and sunset moment
4. 260 MHZ high-speed processor, maps refresh fast
5. A variety of data interface, may meet AIS and radar, etc
6. GPS rapid positioning, multistage speed, course filtering
7. Large capacity of the track, waypoint and obstacles storage space
8. Full waterproof make severe environment design, suitable for severe weather use.
Main parameters:
Type
|
BMMEEGPS-006/008
|
Shell
|
ABS full seal waterproof design
|
Bracket
|
Aluminum alloy metal can rotate
|
Interface
|
NMEA0183, USB port, AIS input
|
Antenna
|
8 m Marine antenna
|
Size
|
BMMEEGPS-006(210 * 135 * 60 mm) BMMEEGPS-008(262 * 172 * 65 mm)
|
Weight
|
BMMEEGPS-006 0.6 Kg BMMEEGPS-008 0.8 Kg
|
Screen
|
BMMEEGPS-006: 5.7 inches (119 mm * 97 mm), 320 * 240 lattice, eight level gray LCD screen
BMMEEGPS-008: 8 inches (162 mm * 121.5 mm), 800 * 600 lattice, TFT color LCD screen
|
Temperature
|
-30 ℃ ~ 65 ℃ (working temperature), - 35 ℃ ~ 75 ℃ (hidden temperature)
|
Power
|
10 ~38VDC, power about 4 w, with protection
|
GPS function
|
Satellite receiving
|
Parallel 16 channel at the same time receive, may receive differential signal
|
Precision
|
7 meters (ceps) was verified by speed section 0.1
|
Filtering
|
Direction, speed filter 1-30 seconds
|
Positioning time
|
Warm start 15 seconds, cold start 45 seconds
|
Positioning data update rate
|
Once per second
|
|
|
Navigation function
|
Can put 18000 waypoint, can record icon, setting time, precision and comment
|
Can put fifty route, each route can accommodate 300 a waypoint
|
Track point: article and track points, including 1 the real-time track, 39 of the historical track, each track records to 2100 points, a total of 8400 points, remember every point information including time, location, direction
|
Can set features mark 99
|
Built-in China drainage diagram, coastal line chart, the Yangtze river and the pearl river navigation chart, and through the USB port rapid upgrade
|
Characteristics
|
Large capacity track record storage space, and be able to edit each track, the length and the area calculation, track return, track import functions
|
1 the real-time track line, according to distance or time interval record, record process can adjust the record interval or suspend notes, etc
|
The latest high sensitivity GPS receiving engine with professional kalman filtering,
can quickly capture satellite, fast positioning, speed course super stability
|
|
