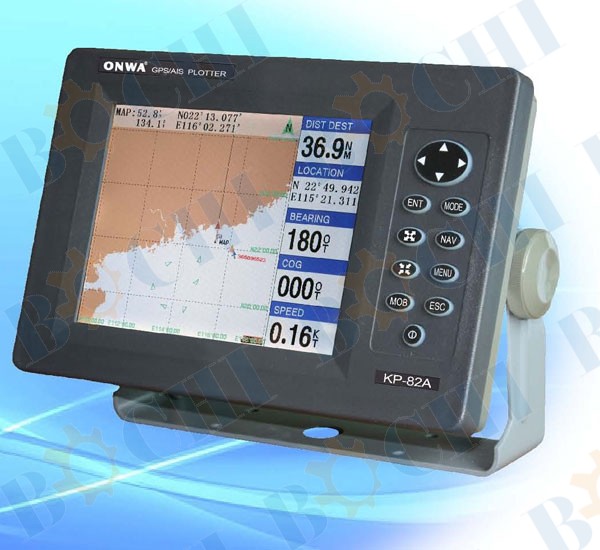

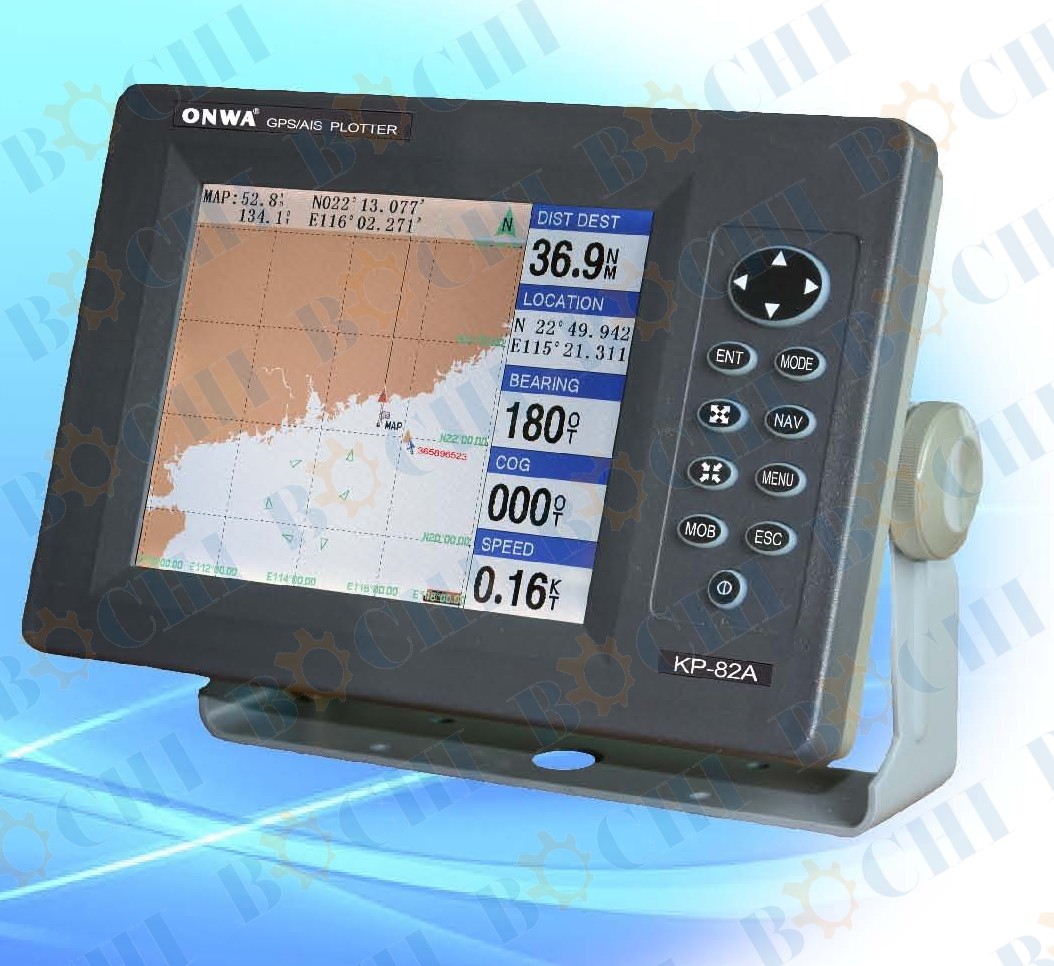

Features:
Built-in Class B AIS Transponder (82A) or Receiver only (82B)
8″ Color TFT Day-View LCD
Improved accuracy with built-in SBAS receiver
Multiple display modes to suit a variety of navigational requirements
Up to 18,000 waypoints, 50 routes and 84,000 track points
99 kinds of marks for various objects
Waypoint & Route upload/download through USB port
PLOTTER CHARACTERISTICS
|
1. Display
|
8″ (162mm x 121.5mm), 640 x 480, Color TFT LCD
|
2. Waypoints
|
Up to 18,000 waypoints, including the optional logo, or as geographic
information
|
3. Routes
|
Up to 50 routes (300 waypoints for each route)
|
4. Tracks
|
40 Tracks including 1 real-time track record and 39 history track records.
2,100 points for each track, 84,000 points in total. The information of
each point including time, location and direction
|
5. Marks
|
Up to 99 kinds of marks for various objects
|
6. Alarms
|
Anchor, XTE, Arrival, Next WPT, Impact, PDOP
|
7. Charting System
|
K-chart
|
8. Chart Scale
|
0.006nm~380nm
|
GPS CHARACTERISTICS
|
1. Satellite Receiver Type
|
50 Channels, GPS L1 frequency, C/A Code
|
2. Horizontal Position Accuracy
|
Autonomous < 2.5m, SBAS < 2.0m
|
3. Velocity Accuracy
|
0.1m/s
|
4. Heading Accuracy
|
0.5 degrees
|
5. Time-To-First-Fix
|
Cold Start (Autonom ous) : 32 s
Warm Start (Autonomous) : 32 s
Hot Start (Autonomo us) : <1s
|
6. Max Navigation Update Rate
|
4 Hz
|
7. Dynamics
|
=< 4g
|
8. Operational Limits
|
Velocity 600 m/s
|
AIS CHARACTERISTICS
|
1. Transmitter x 1
|
KP-82A
|
2. Receiver x 2
|
(one time shared between AIS/DSC)
|
3. Frequency
|
156.025 to 162.025 MHz in 25KHz steps
|
4. Output power
|
2 Watts typical
|
5. Channel bandwidth
|
25KHz
|
6. Channel step
|
25KHz
|
7. Modulation modes
|
25KHz GMSK (AIS, TX and RX)
25KHz AFSK (DSC, RX only)
|
8. Bit rate
|
9600 b/s +- 50 ppm (GMSK)
1200 b/s +- 30 ppm (FSK)
|
9. RX sensitivity
|
Sensitivity – 107dBm 25Khz
Message error rate less than: 2%
Co-channel 10dB
Adjacent channel 70dB
IMD 65dB
Blocking 84dB
|
|
