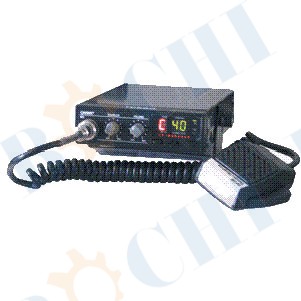

Description:
Band 6, 4 w transmission power, the maximum can reach 5 w
Characteristic:
Frequency range: 240 channel 26.065 to 28.755 MHz
Modulation methods: amplitude modulation (A3)
Antenna impedance: 50 Ohm
input voltage: 12 ~ 14 V DC
Dimension: 124 (width) X 38 (high) X 190 mm (length)
Weight: 1200 g
Receiver:
Sensitivity: 1.0 uV above, 10 db SNR
Adjacent selective: 60 db (70 db at 10 KHZ) (20 KHZ)
Intermediate frequency: the first intermediate frequency IF = second intermediate frequency 10.695 MHz IF = 455 KHZ
Audio output: the biggest 2 w
Audio response: 450 hz - 2500 hz
Intermodulation interference resistance: 45 db or above
Muting: 0.2 uV adjustable between ~ 1 mv
Transmitter:
Output power: normal 4 w, 5 w
Modulation capacity: 80-90%
Stray rf components: 62 db or better
Frequency deviation: less than 0.002%
Rated current (13.8 V power supply) : 1.3 Amps (not modulation), 2.0 Amps (modulation)
|
