High Sensitivity Marine GPS Navigation Solution
Compact in size, yet big on features and performance,
the model is the perfect GPS navigator for a wide range of vessels.
This advance unit provides accurate and reliable position fixing ,
thanks to a super sensitive, 50-channel GPS receiver
ombined with integrated SBAS technology.

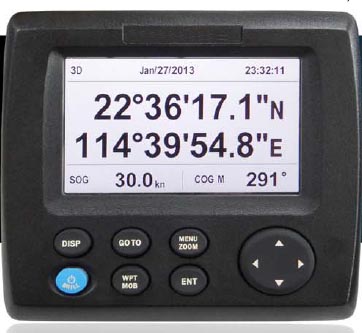

The HP-33 has a waterproof display and is designed to
stand up to tough marine conditions.
The durable casing houses an impressive memory,
capable of storing up to 3,000 points of ship’s track,
10,000 points for marks and waypoints,
and 100 routes of up to 30 waypoints each.
Vital navigation data is presented on 4.3” color LCD .
NMEA 0183 protocol versions are also supported.
FEATURE:
1)4.3” sunlight viewable color LCD
2)GOTO track navigation
3)Enhanced data legibility thanks to large characters and high resolution visual aid
4)Stores Up to 10,000 waypoint, 100 routes and 3000 track points
5)Proximity waypoint alarms
6)7 display modes available , including 2 user-customized modes
7)Delicated Man Over Board Button (MOB)
8) Supports NMEA 0183 ver 2.0
9)Contact closure capability available on the 8p connector
10) SBAS capable for better measurement
Various Displays
This model provides navigation data and displays them in a wide
variety of numerical and graphical formats.
You may freely select which data you want displayed with easy to use controls.
The combination of a high resolution screen and large data fields
makes the screen easy to read in almost any condition.
SPECIFICATIONS
Display
Size: 4.3”color LCD (Brightness: 500cd)
Effective display area: 95.04(W) x 53.85(H) mm LCD
Pixel: 480 x 272 pixels
Display Mode: Plotter, Highway, Steering, Satellite, Nav Date and
2 pages Customizable Display
Memory Capacity:
3000 ship’s track points
10000 waypoints with comments
100 routes, 30 waypoint / route
Alarms: Arrival, Anchor watch, XTE, Speed, Time, Trip, Odometer
Projection: Mercator projection
Plot Scales: 0.01nm~320nm
GPS/SBAS
1)Receiver Type: GPS: 50 channels, C/A code,
SBAS: WAAS, EGNOS, MSAS, GAGAN
2)Receiver Frequency: L1 (1575.42 MHz)
3)Time to First Fix: Gold start: 32s
Hot start: <1S
4)Tracking Velocity: 500m/s Max
5) Altitude: 50000m Max
6) Dynamics: <=4g
7)Geodetic System: WGS-84 (and others)
Accuracy
GPS: 2.5m
SBAS: 2m
Velocity: 0.1m/s
Heading: 0.5 degrees
Interface
Ports: DATA1: (NMEA0183 ver 2.0)
DATA2: RS-232C
Output:
REM1: DTM, GGA, GLL, RMB, RMC, VTG, ZDA
REM2: BWC, DTM, GGA, RMB, RMC, VTG, ZDA
AP: AAM, APB, BOD, BWC, BWR, GLL, VTG, XTE, ZDA
GPS: GGA, GSA, GSV, VTG
Environment
Temperature:
Display unit: -15℃ to +55℃
Antenna unit: -25℃ to + 70℃
Waterproofing:
Display unit: IPX5
Antenna unit: IPX6
Power supply
12–24 VDC, 240-120 mA
Physical
Size: 181mm(w)*143mm(H)*83mm(D)
Weight: 0.71kg
Equipment List
1) Display unit HP-33 with drop cable 2m
2) Antenna unit HA-017 with 10 m cable 1 set
3) Installation materials and spare parts 1 set
4) Operator manual
