ANSI Flange
Package
Model
|
DN
(mm)
|

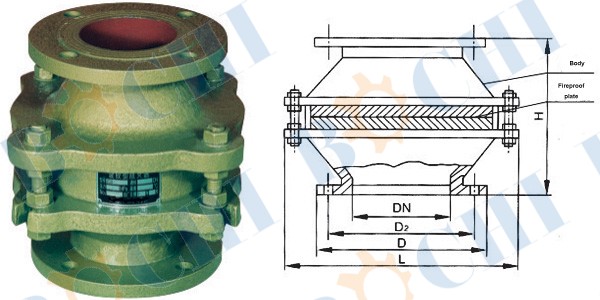

Dimension(mm)
|
D
|
D2
|
L
|
H
|
n-d
|
BMMVPPSFA001
|
2"
|
152
|
120.5
|
220
|
235
|
4-19
|
BMMVPPSFA002
|
3"
|
190
|
152.5
|
280
|
270
|
4-19
|
BMMVPPSFA003
|
4"
|
229
|
190.5
|
325
|
275
|
8-19
|
BMMVPPSFA004
|
6"
|
279
|
241.5
|
425
|
290
|
8-22
|
BMMVPPSFA005
|
8"
|
343
|
298.5
|
495
|
305
|
8-22
|
BMMVPPSFA006
|
10"
|
406
|
362
|
595
|
320
|
12-25
|
BMMVPPSFA007
|
12"
|
483
|
432
|
655
|
405
|
12-25
|
Body material:WCB,Stainless steel 304/316
Fire arresting trim:Stainless steel
The seals:PTFE,Oil resistant rubber asbestos
Temperature:≤480℃
Pressure:0.6~5.0 mpa
Explosion-proof level:BS5501:IIA,IIB,IIC

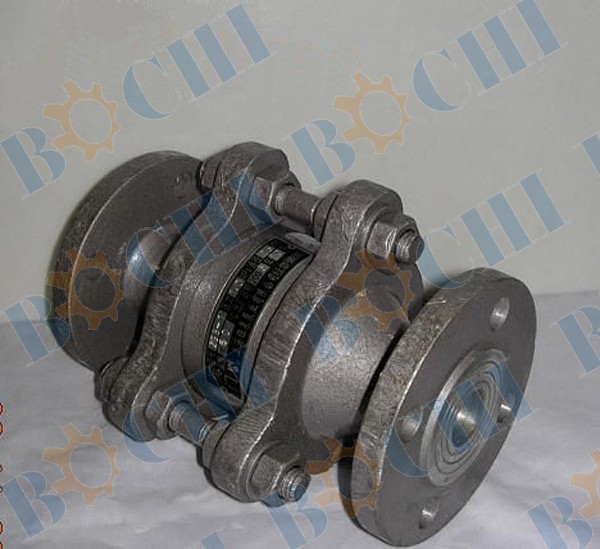

Flame arrester is suitable for the pipeline,a class of flash point less than 28 ℃,oil,hydrogen and oxygen liquefaction class.
Can be used with breather valve,also can be used alone.
|
