Resistance Deflagration Type Pipe Flame Arrester
Date:2020-06-17 Click:411 Share to:
Resistance Deflagration Type Pipe Flame Arrester
Package

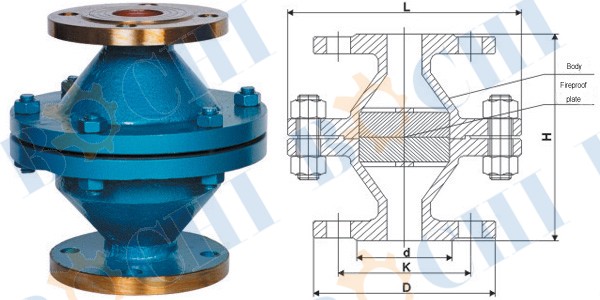

Model |
DN |
Dimension(mm) |
||||
D |
K |
DL |
L |
n-*d |
||
BMMVPPSFA001 |
20 |
105 |
75 |
195 |
200 |
4×14 |
BMMVPPSFA002 |
25 |
115 |
85 |
195 |
200 |
4×14 |
BMMVPPSFA003 |
32 |
135 |
100 |
245 |
220 |
4×18 |
BMMVPPSFA004 |
40 |
145 |
110 |
245 |
240 |
4×18 |
BMMVPPSFA005 |
50 |
160 |
125 |
245 |
240 |
4×18 |
BMMVPPSFA006 |
65 |
180 |
145 |
245 |
240 |
4×18 |
BMMVPPSFA007 |
80 |
195 |
160 |
280 |
270 |
8×18 |
BMMVPPSFA008 |
100 |
215 |
180 |
335 |
280 |
8×18 |
BMMVPPSFA009 |
125 |
245 |
210 |
380 |
300 |
8×18 |
BMMVPPSFA010 |
150 |
280 |
240 |
460 |
360 |
8×22 |
BMMVPPSFA011 |
200 |
335 |
295 |
520 |
420 |
12×22 |
Body material:WCB,Stainless steel 304/316
Fire arresting trim:Stainless steel
The seals:PTFE,Oil resistant rubber asbestos
Temperature:≤480℃
Pressure:0.6~5.0 mpa
Explosion-proof level:BS5501:IIA,IIB,IIC
Flame arrester is suitable for the pipeline,a class of flash point less than 28 ℃,oil,hydrogen and oxygen liquefaction class.
