Hydrogen Gas Fire Arrester
Package
Model
|
DN
(mm)
|

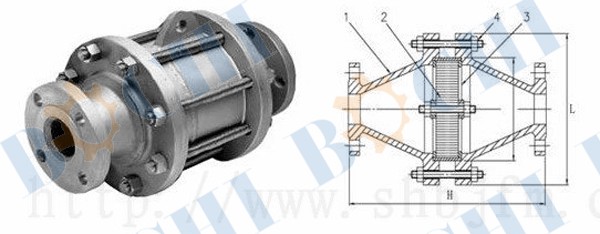

Dimension(mm)
|
L
|
H
|
BMMVPPSFA001
|
20
|
195
|
200
|
BMMVPPSFA002
|
25
|
195
|
200
|
BMMVPPSFA003
|
40
|
245
|
240
|
BMMVPPSFA004
|
50
|
245
|
240
|
BMMVPPSFA005
|
80
|
280
|
250
|
BMMVPPSFA006
|
100
|
335
|
260
|
BMMVPPSFA007
|
150
|
460
|
360
|
BMMVPPSFA008
|
200
|
520
|
420
|
Body material:Carbon steel,Stainless steel 304/316
Fire arresting trim:Stainless steel
The seals:PTFE,Oil resistant rubber asbestos
Temperature:≤480℃
Pressure:0.6~5.0 mpa
Explosion-proof level:BS5501:IIA,IIB,IIC
Flame arrester is suitable for the pipeline,a class of flash point less than 28 ℃,oil,hydrogen and oxygen liquefaction class
|
