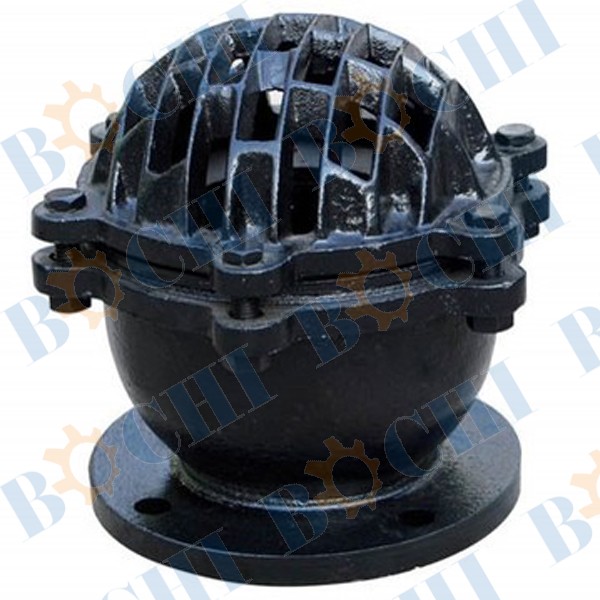

Cast Iron Foot Valve With Strainer
Date:2020-06-17 Click:401 Share to:
Material |
|
Body / Bonnet/Disc |
Gray Cast iron |
Seal ring |
Rubber |
PN(Mpa) |
Test pressure(Mpa) |
Working temperature(℃) |
Application medium |
||
Strength (Water) |
Seal (Water) |
||||
H42X-2.5 |
0.25 |
0.4 |
0.25 |
≤50 |
Water |

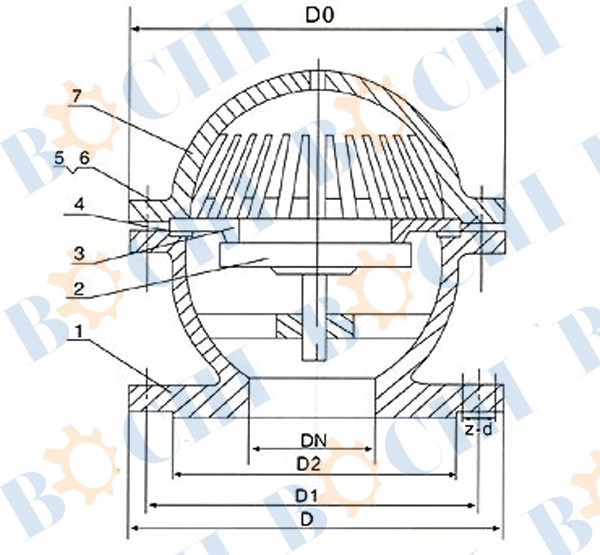

Type |
DN(mm) |
Dimension(mm) |
Weight |
||||||||
D |
D1 |
D2 |
b-f |
Z-Фd |
DO |
hO |
H |
||||
BMMVPPSFV016 |
H42X-2.5 |
50 |
140 |
110 |
90 |
16-3 |
4-14 |
135 |
17 |
142 |
4 |
BMMVPPSFV017 |
65 |
160 |
130 |
110 |
16-3 |
4-14 |
168 |
25 |
180 |
6.5 |
|
BMMVPPSFV018 |
80 |
185 |
150 |
125 |
18-3 |
4-18 |
198 |
32 |
197 |
8.5 |
|
BMMVPPSFV019 |
100 |
205 |
170 |
145 |
18-3 |
4-18 |
247 |
40 |
230 |
14.5 |
|
BMMVPPSFV020 |
125 |
235 |
250 |
175 |
20-3 |
8-18 |
272 |
43 |
270 |
18 |
|
BMMVPPSFV021 |
150 |
260 |
225 |
200 |
20-3 |
8-18 |
315 |
38 |
297 |
24 |
|
BMMVPPSFV022 |
200 |
315 |
280 |
255 |
22-3 |
8-18 |
405 |
65 |
382 |
38 |
|
BMMVPPSFV023 |
250 |
370 |
335 |
310 |
24-3 |
12-18 |
465 |
84 |
460 |
64 |
|
BMMVPPSFV024 |
300 |
435 |
395 |
262 |
24-4 |
12-23 |
510 |
90 |
530 |
98 |
|
Material:Brass,cast iron,cast steel,carbon steel,WCB,forged steel,A105,F11,F22,stainless steel...
Working pressure:1.0Mpa-50.0Mpa
Working temperature:-196℃-650℃。
The foot valve is installed at the bottom of the pump suction line.It can automatically prevent the flow back.
Applicable to petroleum, chemical, metallurgy, power, construction, heat, water supply and drainage, water treatment and other industries.
