Stainless Steel Flange Water Pump Foot Valve
Date:2020-06-17 Click:408 Share to:

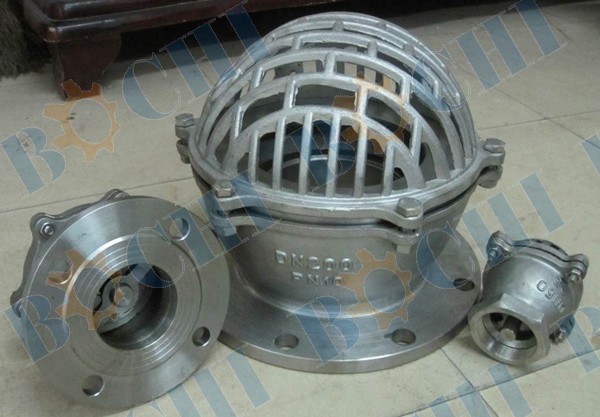

Stainless Steel Foot Valve
Name |
Material |
Body / Bonnet/Disc |
Stainless steel |
Seal ring |
Rubber |
Type |
PN(Mpa) |
Test pressure(Mpa) |
Working temperature(℃) |
Application medium |
|
Strength (Water) |
Seal (Water) |
||||
H42X-2.5 |
0.25 |
0.4 |
0.25 |
≤50 |
Water |
Model |
Type |
DN(mm) |
Dimension(mm) |
Weight |
|||||||
D |
D1 |
D2 |
b-f |
Z-Фd |
DO |
hO |
H |
||||
BMMVPPSFV016 |
H42X-2.5 |
50 |
140 |
110 |
90 |
16-3 |
4-14 |
135 |
17 |
142 |
4 |
BMMVPPSFV017 |
65 |
160 |
130 |
110 |
16-3 |
4-14 |
168 |
25 |
180 |
6.5 |
|
BMMVPPSFV018 |
80 |
185 |
150 |
125 |
18-3 |
4-18 |
198 |
32 |
197 |
8.5 |
|
BMMVPPSFV019 |
100 |
205 |
170 |
145 |
18-3 |
4-18 |
247 |
40 |
230 |
14.5 |
|
BMMVPPSFV020 |
125 |
235 |
250 |
175 |
20-3 |
8-18 |
272 |
43 |
270 |
18 |
|
BMMVPPSFV021 |
150 |
260 |
225 |
200 |
20-3 |
8-18 |
315 |
38 |
297 |
24 |
|
BMMVPPSFV022 |
200 |
315 |
280 |
255 |
22-3 |
8-18 |
405 |
65 |
382 |
38 |
|
BMMVPPSFV023 |
250 |
370 |
335 |
310 |
24-3 |
12-18 |
465 |
84 |
460 |
64 |
|
BMMVPPSFV024 |
300 |
435 |
395 |
262 |
24-4 |
12-23 |
510 |
90 |
530 |
98 |
|
Material:Brass,cast iron,cast steel,carbon steel,WCB,forged steel,A105,F11,F22,stainless steel...
Working pressure:1.0Mpa-50.0Mpa
Working temperature:-196℃-650℃。
The foot valve is installed at the bottom of the pump suction line.It can automatically prevent the flow back.
Applicable to petroleum, chemical, metallurgy, power, construction, heat, water supply and drainage, water treatment and other industries.
