Marine JIS Cast Iron Gate Valve

Date:2020-06-10 Click:315 Share to:

Part name	Material
	Name		Name
Body/Bonnet	C1	D1	C1	D1
Disc/Seat	cast bronze		Stainless steel
Stem	bronze		Stainless steel
Packing	flexible graphite		flexible graphite

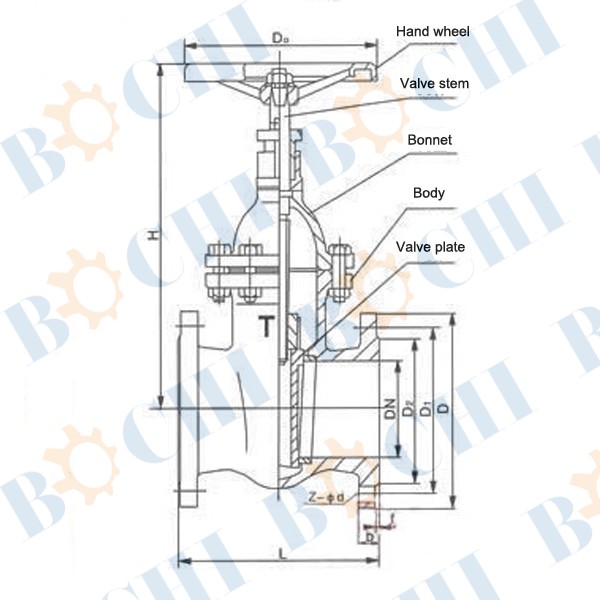

DN(mm)	PN	L	D	C	n-Фd	Weight
50	5K	180	130	105	4*15	13.5
65		190	155	130	4*15	19
80		200	180	145	4*19	24.2
100		230	200	165	8*19	35.3
125		250	235	200	8*19	48.1
150		270	265	230	8*19	65.3
200		290	320	280	8*23	103
250		330	385	345	12*23	164
300		370	430	390	12*23	236
50	10K	200	155	120	4*19	19.4
65		220	175	140	4*19	27.6
80		230	185	150	8*19	33
100		250	210	175	8*19	45.8
125		270	250	210	8*23	65.9
150		290	280	240	8*23	86
200		320	330	290	12*23	136
250		380	400	355	12*25	230
300		440	445	400	16*25	331
50	16K	220	155	120	8*19	20.4
65		220	175	140	8*19	30.4
80		234	200	160	8*23	36.3
100		254	225	185	8*23	54.4
125		274	270	225	8*25	72.5
150		294	305	260	12*25	94.6
200		328	350	305	12*25	149.6
250		388	430	380	12*27	243.5
