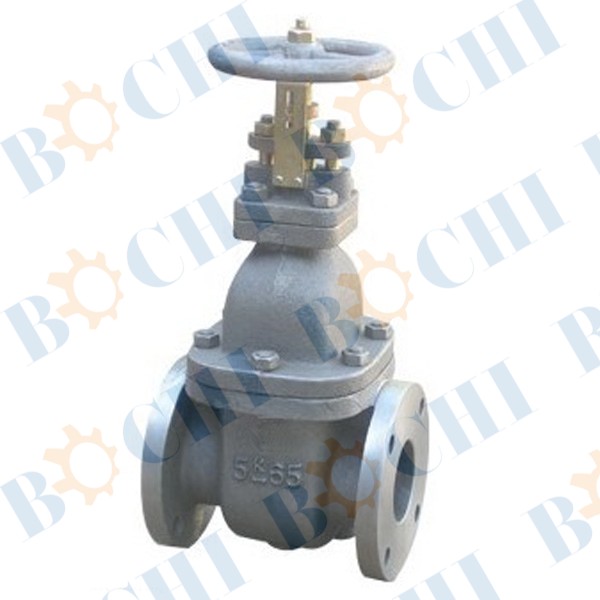

Marine JIS Cast Steel Gate Valve

Date:2020-06-10 Click:297 Share to:

Part name	Material
	Name		Name
Body/Bonnet	C1	D1	C1	D1
Disc/Seat	cast bronze		Stainless steel
Stem	bronze		Stainless steel
Packing	flexible graphite		flexible graphite

DN(mm)	PN	L	D	C	n-Фd	Weight
50	5K	180	130	105	4*15	13.5
65		190	155	130	4*15	19
80		200	180	145	4*19	24.2
100		230	200	165	8*19	35.3
125		250	235	200	8*19	48.1
150		270	265	230	8*19	65.3
200		290	320	280	8*23	103
250		330	385	345	12*23	164
300		370	430	390	12*23	236
50	10K	200	155	120	4*19	17.1
65		220	175	140	4*19	26.5
80		230	185	150	8*19	31.5
100		250	210	175	8*19	44.9
125		270	250	210	8*23	63.2
150		290	280	240	8*23	82.3
200		320	330	290	12*23	130
250		380	400	355	12*25	203
300		440	445	400	16*25	291
