Single Loop Fire Alarm Controller

Single Loop Fire Alarm Controller

Type:Area Type Controller
Name:Single Loop Fire Alarm Controller(Wall Type)
Main Power Supply:AC220V  +10%，－15%  50Hz
Secondary Power Supply:DC24V  +30%，－25%
Power dissipation:Monitor state＜5W、alarm state＜10W
Function:repeater is available, VDR connector. Automatic uninterrupted conversion between alternating current power supply and direct current power supply.
Capability: connecting 99 intelligent detectors and 99 intelligent input and output modules.
Controlled Output: immediately , delay

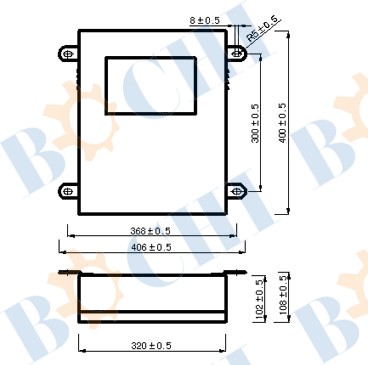

Touch spot capability:DC24V／10AOutside Dimensions：320×440×110(mm) Mounting Dimensions: 370×300(mm)Weight：9Kg
