Single Loop Fire Alarm Controller

Date:2020-06-05  Click:378   Share to:

、
Type:Area Type Controller
Name:Single Loop Fire Alarm Controller(Flush Bonding)
Main Power Supply:AC220V  +10%，－15%  50Hz
Secondary Power Supply:DC24V  +30%，－25%
Function:repeater is available, VDR connector.Automatic uninterrupted conversion between alternating current power supply and direct current power supply.
Power dissipation:Monitor state＜5W、alarm state＜10W
Capability: connecting 99 intelligent detectors and 99 intelligent input and output modules.
controlled output:immediately 、delay
Touch spot capability:DC24V／10A

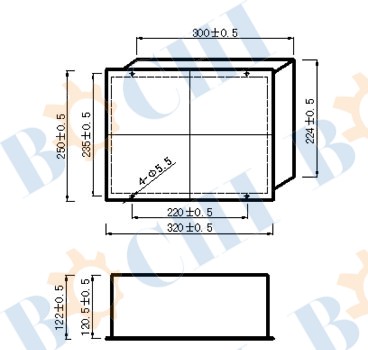

Opening Size：305×228(mm)Outside Dimensions：320×250×122(mm)Mounting Dimensions；220×235(mm)Weight：7Kg
