Wire Rope Heavy Duty Type Thimble
Wire rope Dia.
|

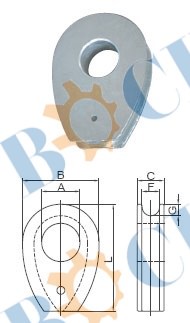

Dimension:mm
|
F
|
C
|
A
|
B
|
L
|
G
|
10
|
11.5
|
17.5
|
25
|
50
|
70
|
7.5
|
12
|
13.8
|
21
|
30
|
60
|
84
|
9
|
14
|
16.1
|
24.5
|
35
|
70
|
98
|
10.5
|
16
|
18.4
|
28
|
40
|
80
|
112
|
12
|
18
|
20.7
|
31.5
|
45
|
90
|
126
|
13.5
|
20
|
23.0
|
35
|
50
|
100
|
140
|
15
|
22
|
25.3
|
38.5
|
55
|
110
|
154
|
16.5
|
24
|
27.6
|
42
|
60
|
120
|
168
|
18
|
26
|
29.9
|
45.5
|
65
|
130
|
182
|
19.5
|
28
|
32.2
|
49
|
70
|
140
|
196
|
21
|
32
|
36.8
|
56
|
80
|
160
|
224
|
24
|
36
|
41.4
|
63
|
90
|
180
|
252
|
27
|
40
|
46.0
|
70
|
100
|
200
|
280
|
30
|
44
|
50.6
|
77
|
110
|
220
|
308
|
33
|
48
|
55.2
|
84
|
120
|
240
|
336
|
36
|
52
|
59.8
|
91
|
130
|
260
|
364
|
39
|
56
|
64.4
|
98
|
140
|
280
|
392
|
42
|
60
|
69.0
|
105
|
150
|
300
|
420
|
45
|
|
