Smit Brackets

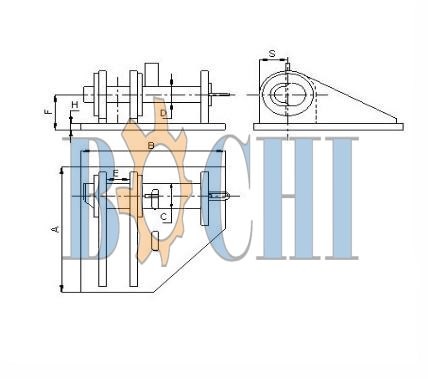

Smit Bracket Drawing
Product No.
|
Nominal Dia.
|
Dimensions(mm)
|
Mass
|
SWL
|
MBL
|
(mm)
|
A
|
B
|
C
|
D
|
E
|
F
|
H
|
S
|
(kgs)
|
(KN)
|
(KN)
|
BMDM-MA-SB01
|
54
|
720
|
650
|
115
|
75
|
100
|
205
|
30
|
118
|
195
|
1000
|
2000
|
BMDM-MA-SB02
|
76
|
900
|
800
|
160
|
110
|
150
|
240
|
30
|
170
|
390
|
2000
|
4000
|
BMDM-MA-SB03
|
84
|
1018
|
905
|
170
|
120
|
160
|
273
|
35
|
210
|
560
|
2500
|
5000
|
BMDM-MA-SB04
|
95
|
1120
|
940
|
195
|
135
|
170
|
290
|
40
|
276
|
760
|
3000
|
6570
|
|
|
