IHG/ISWH Stainless steel single-stage centrifugal pump

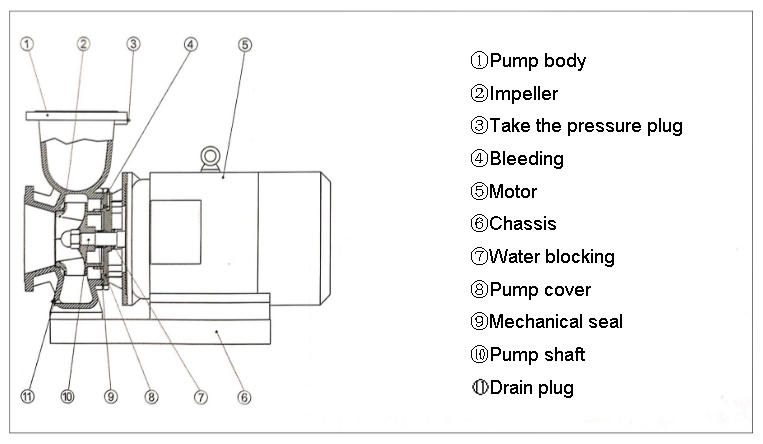

①Pump body: reduce the liquid flow speed, so that the speed can be converted into pressure energy

②Impeller: It plays a leading role in the pump. The blades in the impeller force the liquid to rotate, and the liquid is thrown around under the action of centrifugal force.

③Take the pressure plug: install a pressure gauge to monitor the normal operation of the pump.

④Bleeding: Discharge the gas in the pump to ensure the normal start of the pump.

⑤Motor: The driving part of the pump adopts direct connection.

⑥ Chassis: The fixed part of the pump to ensure the stability of the pump installation.

⑦Water blocking: prevent water from entering the motor due to water leakage in the seal.

⑧Pump cover: well-designed, the same end cover as the motor, the axial size is shortened, and the structure is simple.

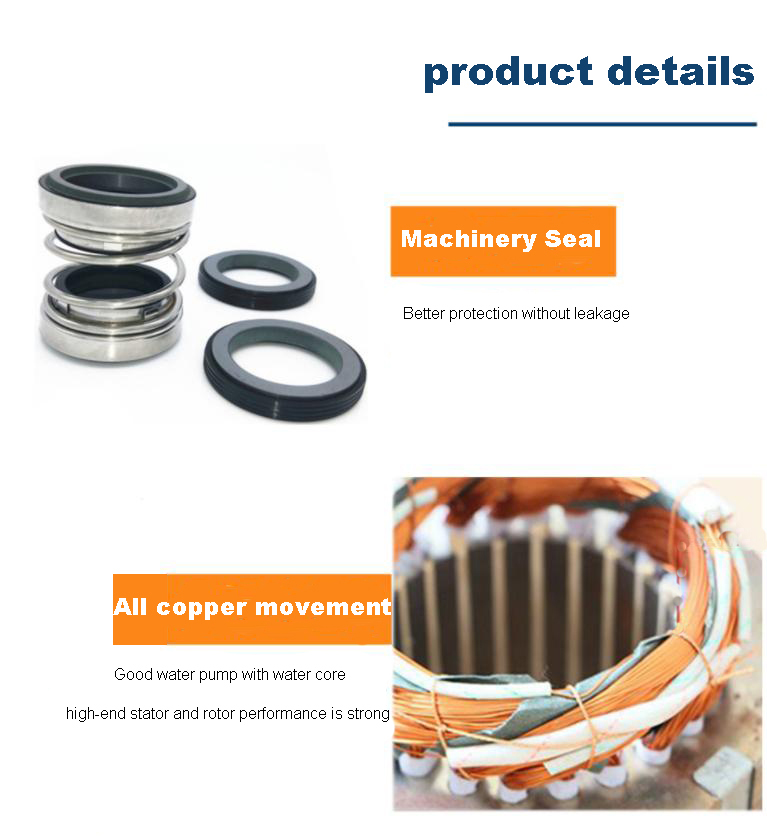

⑨Mechanical seal: It is made of stainless steel, tungsten carbide, fluorine rubber and other materials, with good sealing performance, long life and no leakage.

⑩Pump shaft: coaxial with the motor, high concentricity, so that the pump runs smoothly without noise and vibration.

⑪Drain plug: When maintenance or long-term use, drain the liquid in the pump.
