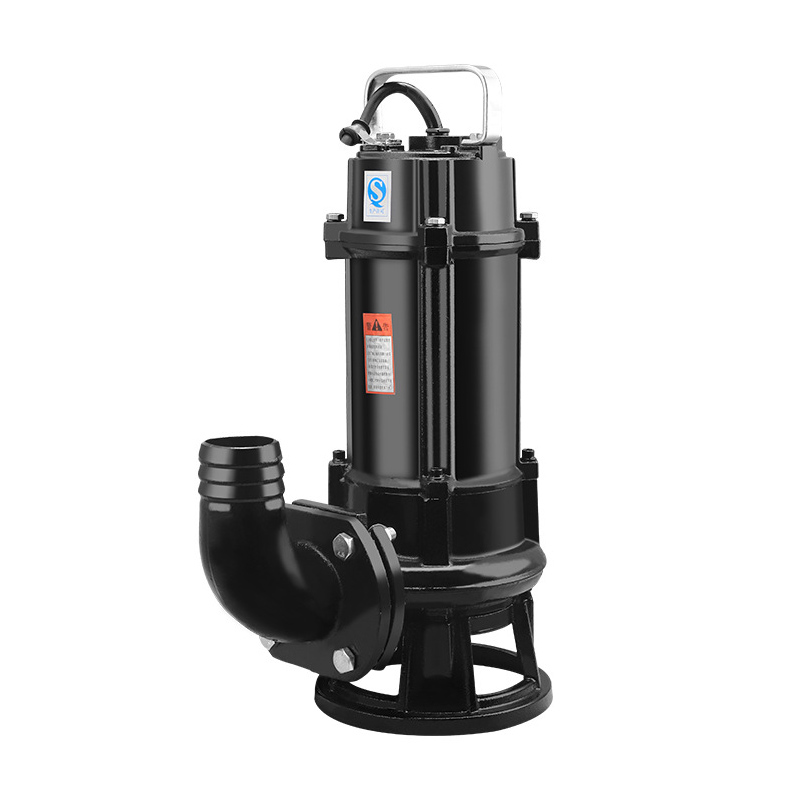

Cutting submersible pump WQ series

Date:2020-11-18 Click:711 Share to:

Item no: 102124

Model: 50 wqp10-10-0.75

Pressure: 0.13 (Mpa)

Performance: No blocking

Material: Cast iron

Driving mode: electric

Pump shaft position: side vertical

Number of impellers: single stage

Impeller structure: semi-open impeller

Number of impellers: 1

Purpose: Sewage pump

Principle: Center open pump

Conveying medium: sewage pump, impurity pump

Speed: 2900 (R /m)

Power: 0.75-7.5 (KW)

Flow rate: 10-100 (m3/h)

Head: 10-30 (m)

Cavitation allowance: 3 (m)

Weight: 30 kg

Voltage: 380 (V)

Suction diameter: 50-100mm

Discharge diameter: 50-100mm
