Open Type Turnbuckle for Ship
SWL
|
d
|
UU type
|
OO type
|
OU type
|

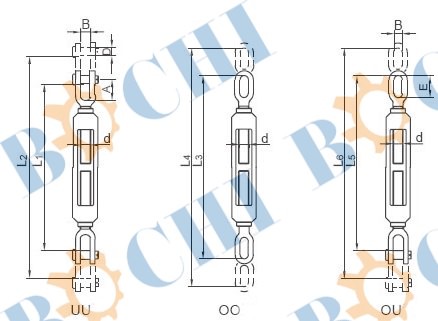

Installation Dimension (mm)
|
M grade
|
P grade
|
L1-L2
|
L3-L4
|
L5-L6
|
A
|
B
|
D
|
E
|
0.12t
|
0.18t
|
M6
|
155-230
|
140-245
|
160-235
|
18
|
10
|
6
|
19
|
0.25t
|
0.4t
|
M8
|
210-325
|
230-345
|
220-335
|
20
|
12
|
8
|
24
|
0.4t
|
0.6t
|
M10
|
230-340
|
255-365
|
240-355
|
25
|
14
|
10
|
28
|
0.6t
|
0.8t
|
M12
|
280-420
|
310-450
|
295-435
|
30
|
16
|
12
|
34
|
0.9t
|
1.2t
|
M14
|
295-435
|
325-465
|
310-450
|
36
|
18
|
14
|
40
|
1.2t
|
1.7t
|
M16
|
355-525
|
390-560
|
375-540
|
42
|
22
|
16
|
47
|
1.7t
|
2.1t
|
M18
|
375-540
|
415-580
|
395-560
|
50
|
25
|
18
|
55
|
2.1t
|
2.7t
|
M20
|
420-605
|
470-655
|
445-630
|
55
|
27
|
20
|
60
|
2.7t
|
3.5t
|
M22
|
445-630
|
495-680
|
470-655
|
62
|
30
|
23
|
70
|
3.5t
|
4.5t
|
M24
|
505-720
|
575-785
|
540-755
|
65
|
32
|
26
|
80
|
4.5t
|
5.5t
|
M27
|
545-755
|
610-820
|
575-790
|
78
|
36
|
30
|
90
|
6.0t
|
7.5t
|
M33
|
635-880
|
700-950
|
665-915
|
85
|
40
|
32
|
100
|
7.5t
|
9.5t
|
M36
|
655-900
|
730-975
|
690-940
|
95
|
44
|
38
|
105
|
9.5t
|
12t
|
M39
|
725-985
|
820-1085
|
770-1035
|
105
|
49
|
41
|
120
|
11t
|
14.5t
|
M45
|
765-1025
|
855-1120
|
810-1075
|
120
|
52
|
45
|
130
|
14t
|
18t
|
M48
|
845-1135
|
940-1230
|
890-1180
|
130
|
58
|
50
|
140
|
17.5t
|
22t
|
M56
|
870-1160
|
970-1260
|
920-1210
|
140
|
65
|
57
|
150
|
21t
|
25t
|
M60
|
940-1250
|
1085-1390
|
1010-1320
|
150
|
70
|
61
|
170
|
25t
|
32t
|
M64
|
975-1280
|
1130-1435
|
1055-1360
|
160
|
75
|
65
|
180
|
|
