Name
|

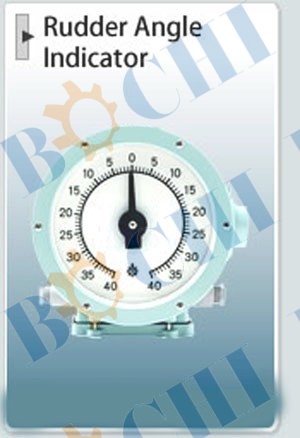

AC rudder angle indicator
|
Power supply
|
AC220V/110V 50Hz/60Hz allowable variation range: ± 5%;
|
Ambient temperature
|
-25 ℃ ~ +55 ℃
|
Relative Humidity
|
95%
|
Chatter
|
Acceleration 7g, frequency of 80 to 100 beats / min;
|
Shock
|
Two
|
VDR Interface
|
to ± 10V signal or 4 ~ 20mA signal Optional
|
Protection class
|
OQF type is IP22, ODS type is IP20, IP56 rest
|
Other
|
Dial lighting in all black case, dial 1.5 meters away from
the place where we can clearly read the present value in degrees..
Pointer damping time less than 3 seconds;
|
Model
|
Visual diameter
|
Dimming form
|
Form Protection
|
Remark
|
OQF1D-1/2
|
Φ100
|
Transfer to other localities
|
IP22
|
Square embedded
|
OQF1E-1/2
|
|
-----------
|
|
|
QOF2D-1/2
|
Φ130
|
Transfer to other localities
|
|
|
QOF2E-1/2
|
|
-------
|
|
|
OQY3D-1/2
|
Φ160
|
Transfer to other localities
|
|
Round embedded
|
OQY3E-1/2
|
|
------
|
|
|
OTN3A-1/2
|
Φ160
|
In tune
|
IP56
|
Square round Wall
|
OTN3B-1/2
|
|
Transfer to other localities
|
|
|
OTN4A-1/2
|
Φ200
|
In tune
|
|
|
OTN4B-1/2
|
|
Transfer to other localities
|
|
|
OTY4A-1/2
|
Φ200
|
In tune
|
|
Round embedded
|
OTY4B-1/2
|
|
Transfer to other localities
|
|
|
ODS6A-1/2
|
Φ350
|
In tune
|
IP20
|

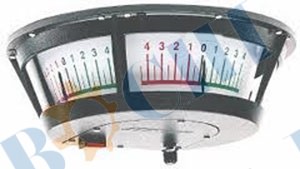

Three-side top mount
|
ODS6B-1/2
|
|
Transfer to other localities
|
|
|
ODS7A-1/2
|
Φ450
|
In tune
|
|
|
ODS7B-1/2
|
|
Transfer to other localities
|
|
|
|
|
|
|
|
