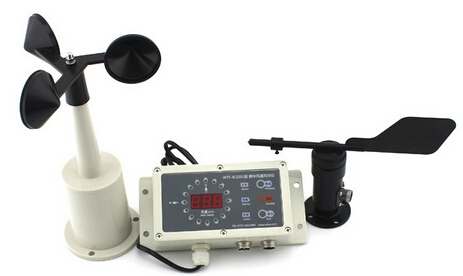

Wind Speed and direction for weather station
Display:
Display Size
|
197.5mm×90mm×45mm
|
Working Power
|
AC220V or DC24V(±15%)
|
Installation
|
Wall-Mounted
|
Power Consumption
|
< 20 w
|
Alarm Volume
|
>60 db
|
IP Class
|
IP 65
|
(1) display error: more than 3%
(2) The movement error: more than 2%
(3) Voltage range: AC220V +15%
(4) Insulating ability: p Ω 10M
(5) Power Consumption: 20W
(6) Working environment: room f temperature:-30℃ ~+60℃ humidity 90%
Room Temperature within: 5℃ ~+50 ℃hunidity 90%
(1) Measurement range: 1.0~60 m/s
(2) Accuracy: < 30m/s ±(0.5 + 0.05V)
(3) Resolution:0.1 m/s
(4) Starting Wind Speed: < 0.7m/s
(5) Work Environment: -30℃~+60℃
Wind Direction Sensor
(1) Measurement range: 16 direction (360 degrees)
(2) Measurement accuracy:±5%
(3) Input voltage:DC 5V~ 24V DC
(4) Output signal: Switch the signal/current signal/voltage signal
|
