Features:
Locks onto current course when auto is engaged
Pre-set course selection enables easy
Rudder and counter rudder controls enable autopilot to be customized to a vessel’s specific steering characteristics
Off course alarm warns when vessel is not responding to autopilot control
Navigate with designed route of GPS Navigator
Timer can be used as an adjustable watch alarm
Gyro compass input with Gyro converter unit (optional)
Designed to have up to three remote steering position.
FUNCTIONS:
1 Auto mode
Input course directly from numeric keypad
Change course by panel dial knobke ke
Change course by fix or handheld remote (optional)
2 Manual mode
3 Power steering mode
4 GPS Navigation mode
5 Remote mode
STEERING SYSTEM:
Hydraulic or electro-mechanical
HEADING SENSOR:
6 Magnetic compass thru pick up coil (standard)
7 Gyro compass thru gyro converter (optional)
NAV SENSOR:
GPS, Loran outputting data in NMEA0183
ADJUSTMENT OF PARAMETERS:
Weather, Rudder and Counter Rudder from panel
Trim, Rudder Ratio and Rudder Limit from PCB pre-set
ALARM:
8 Off course alarm : 1 ~ 180 degree adjustable
9 Watch alarm : 1 ~ 60 adjustable watch alarm. Will trigger external alarm if not reset within 60 sec
10 NMEA data alarm : Trigger when lost of NMEA data from GPS Navigator in GPS Navigation mode
POWER SUPPLY:
12V or 24VDC , standby 0.4A, Auto mode 1.0A for control unit only
EQUIPMENT LIST:

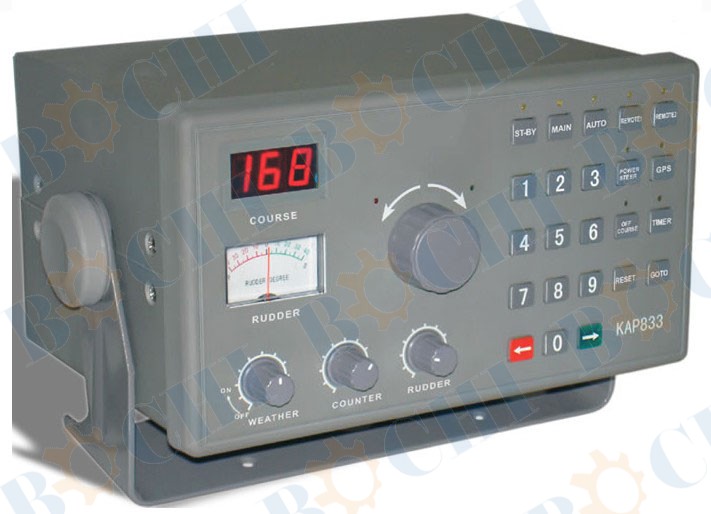

KAP-833 control unit
Heavy duty rudder feedback unit
Magnetic compass pick up coil
Standard accessories
Standard installation kit
Operator manual
|
