Model
|
BMMEENPAP-008
|
Type
|
Dual rudder autopilot
|
Power
|
AC380V、50Hz；220V、50Hz；DC24V
A:three –phase 380V, ±5%
B:220V、50Hz，±5%
C:DC24V、3A,+10% ～ -10%
|
Steering
|
With the move, manual and automatic
|
steering precision
|
≤1º
|
Ineffective area
|
0.5 º ~ 2 º adjustable;
|
Steering mode
|
±40º
|
Solenoid valve parameters
|
DC24V, rated current ≤ 3A
|
Other
|
DHART mode can double pump
|

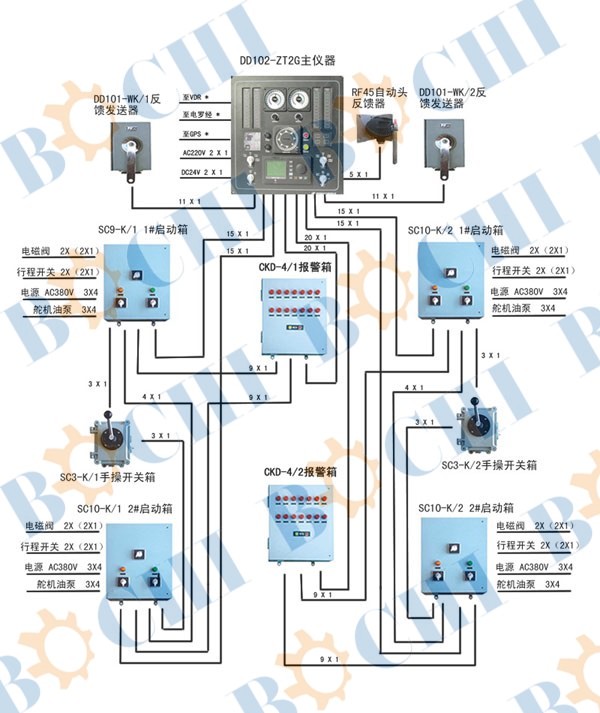

No.
|
Name
|
Type
|
Quantity
|
protect
|
Remark
|
1
|
main instrument
|
Vertical
|
DD101-ZT
|
1
|
IP22
|
Embedded devices need to install the wheel
and two manual DD101-DL
|
Embedded
|
DD102-ZT2G
|
2
|
1 # pump start box
|
SC9-K
|
2
|
3
|
2 # pump start box
|
SC10-K
|
2
|
4
|
Steering gear alarm box
|
CKD-4
|
2
|
5
|
Feedback rudder angle transmitter
|
DD101-WK
|
2
|
IP56
|
6
|
Automatic feedback transmitter
|
RF45
|
1
|
Alarm range :Alarm range: power power failure, overload, phase failure, power failure control, low oil level, oil temperature,
oil filter blockage, the pressure difference, compass failure, two servos are dual;
and with alarm test function and automatic reset function after silencer
|
