Speed Log BMMEENPSL－001
Features:
1. Measuring speed and distance with acoustic correlation principle
2. High accuracy speed sensor with built-in micro-processor reliable operation in both salt and fresh water
3. Providing speed through water and speed assistant speed over ground
4. Log system comparing of master display, electronics unit and transducer
5. 7 ports output date of speed and distance ,4 ports output 200 pulses
6. Transducer installed with tank of valve
Technical performance and specification:
Operating Principle
|
Acoustic Correlation
|
Operation Frequency
|
4.5MHz
|
Power Supply
|
24VDC, AC220V(ELC)
|
Speed Range
|
0-40 Knots
|
Speed Accuracy
|
0.2 Knots 2%
|
Distance Accuracy
|
0.2 nm
|
Total Distance
|
0-99999.9 nm
|
WT/BT Selection
|
Selected by Key
|
Trip/Total distance selection
|
Selected by Key
|
Date Input (NMEAO183)
|
Speed over Ground VTG
|
Date Output (NMEAO183)
|
Speed /distance VBW,VLW
|
Pulse Output (NMEAO183)
|
200 pluses/nm
|
WT Calibration
|
Calibrated 50-150%
|
DEMO Function
|
Using DEMO Key
|
Dimming
|
With Dimming Key
|
Mater Display Dimension
|
160×160×62.5mm
|
Master display vertical installation:
Master display embedded installation:

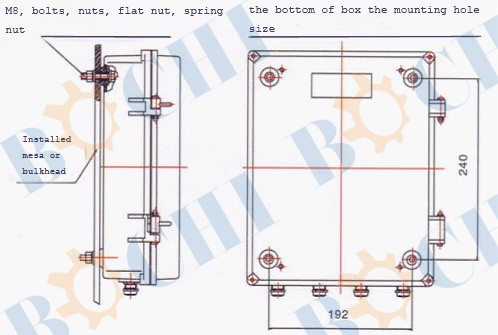

Electronics unit installation:
Sea bottom valve installation:
