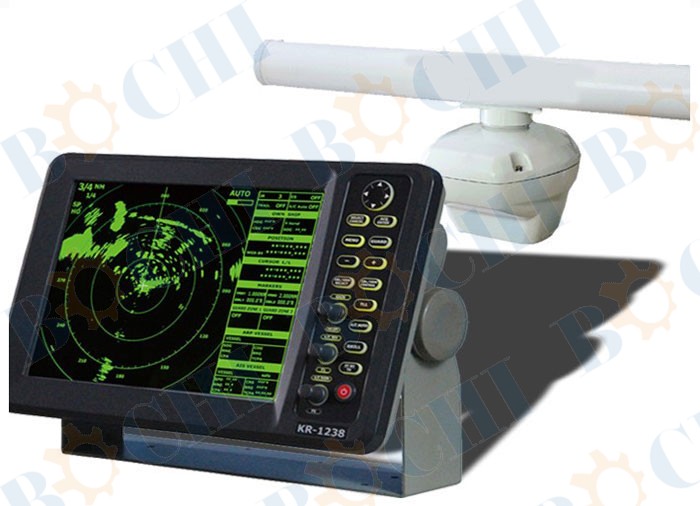

Features:
Customizable Data Field, more flexible data display.
System Software can be upgraded via USB.
AIS display function.
Multi-Color selection for target and background.
Rugged die-cast, waterproof housing.
“Target Tracking” (TT) function, can track and trace up to 20 targets.
User-programmable function keys.
Automatic optimization of radar picture.
Newly enhanced performance.
Head-up, Course-up and North-up representation mode.
Economy Mode, Guard Zone Alarm and Watch Mode.
ANTENNA RADIATOR
|
1. Type
|
KR-1268: 120cm hybrid array
|
2. Length and Rotate speed
|
KR-1268: Open Array 120cm (KRA-2004) 24RPM
|
3. Wind load
|
Relative wind 100 knots
|
4. Beamwidth
|
KRA-2004: Hor: 1.9 Vert: 22
|
|
|
RF TRANSCEIVER
|
1. Frequency
|
9410 +/-30MHz (X-band)
|
2. Pulselength PRR
|
0.08 µ s/2100 Hz(0.125, 0.25, 0.5, 0.75, 1, 1.5* nm)
0.3µ s/1200 Hz(1.5*, 2, 3 nm)
0.8 µ s/600 Hz(3*, 4, 6, 8, 12, 24, 36, 48, 64nm)
* Pulselength & PRR for 1.5 and 3nm ranges can be select in menu
|
3. Peak Output Power
|
6KW nominal
|
4. Mixer and Local Oscillator
|
Microwave Intergrated Circuit
|
5. IF
|
60MHz
Bandwidth: 25MHz (0.08/0.3 µ s), 3MHz (0.8 µ s)
|
6. Noise Figure
|
10dB nominal
|
|
|
|
|
ENVIRONMENT
|
Temperature:
Display unit: -15 to +55 C (Display Unit)
Antenna unit: -25 to +70 C (Antenna Unit)
|
|
|
POWER SUPPLY
|
13.8 VDC, 24 VDC, 36 VDC; 60W (30W in economy mode)
|
|
|
DISPLAY UNIT
|
1. Type
|
12″ LED backlight, 32-bit TFT Color LCD Display
1024(V) x 768(H) dots
|
2. Display Modes
|
Head-up, Course-up*, North-up*, True Motion**
* Heading input required
** Heading and speed inputs required
|
3. Range Scale (nm)
|
Range: 0.125, 0.25, 0.5, 0.75, 1, 1.5, 2, 3, 4, 6, 8, 12, 16, 24, 36, 48, 64, 72
Ring:0.0625,0.125,0.125,0.25,0.25,0.5,0.5,1,1,2,2,3,4,6,12
|
4. Echo Trail
|
Interval: 15s, 30s, 1min, 3min, 6min, 15min, 30min or continuous
|
5. Interface(NMEA 0183 format)
|
any talker (menu selection)
Input:
$–APB,$–BWC,$–BWR,$–DBK,$–DBS,$–DBT,$–DPT,
$–GGA,$–GLC,$–GLL,$–GTD,$–HDG,$–HDW,$–HDT,
$–MDA,$–MTW,$–RMA,$–RMB,$–RMC,$–VTG, $–VHW, $–XTE
Output:
$–OSD,$–RSD,$–TLB,$–TLL,$–TTD,$–TTM
|
6. AIS Display
|
Acquisition : AIS vessels or ATON
Tracking : Auto
Display : Vessel Name, MMSI, Call sign, Range/Bearing, L/L
Speed/Course, ROT, CPA/TCPA
(AIS data input required)
|
7. Target Tracking Function
|
Acquisition : 20 manual/10 auto + 10 manual
Tracking : Auto
Display : Speed, Course, Range/Bearing and CPA/TCPA
|
|
|
EQUIPMENT LIST
|
1 Display unit (KRD-2004): 1 unit
Open Array Antenna unit:
KR-1268: KRA-2004 1 unit
Antenna Cable (KRC-005-10/15/20):
10/15/20/30m (Specify when ordering)
2 Power Cable (KRP-002-0): 3m
3 Standard Spare Parts and instalation materials: 1 set
|
|
