Application:

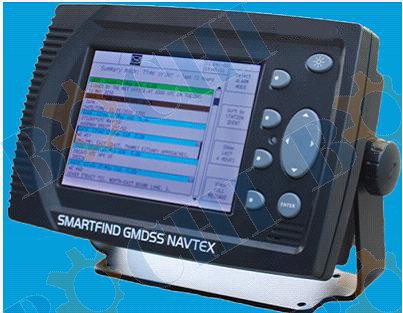

Smart-find GMDSS NAVTEX is latest conform to the provisions of the IMO forced a new voyage warning receiver.
Model:
Features:
1. 6 inches wide screen.
2. Simple and easy to use interface.
3. Large character display, fonts, bright and beautiful, very easy to read.
4. At the same time receive three channels.
5. The ESM (strengthen signal control) technology.
6. RS422 data interface, RS232 print output.
7. Support GPS signal access.
Main technical parameters:
Smart-find GMDSS NAVTEX Navigational receiver performance indicators
|
Receive frequency
|
518kHz/490kHz/4209.5kHz
|
Display
|
1/2 VGA (480 x 320 pixel), backlit, day and night are clearly visible
|
Antenna
|
TNC
|
Power
|
NMEA0183 (GPS) 15 road D - type
|
Antenna input impedance
|
50Ω
|
Antenna output voltage
|
12V DC @ 100mA
|
Alarm
|
9 road D－ type
|
USB interface
|
A V1.1
|
Alarm output
|
Delay contact: 1 a @ 120 v AC / 24 v DC (maximum)
|
Receiving sensitivity
|
2 microvolt
|
Receive frequency stability
|
±10Hz
|
Voltage
|
12V/24V（safety working voltage：10.8V~31.2V）
|
Power
|
8.6W
|
Data interface
|
RS422(NMEA0183)
|
RS422(NMEA0183) print output
|
Transmission rate：4800, 38400, 115200
|
NMEA statement output ：RMC, GLL, ZDA for UTC and NRX,
NRQ, NMK, ACK, ALR
|
NAVTEX Information storage
|
300×500 information character
|
Environment parameters
|
Working temperature
|
-15~55℃
|
Storage temperature
|
-20~55℃
|
humidity
|
0~95%without condensation
|
Compass safety distance
|
0.87M
|
Size
|
219W x 151H x 76D mm(not including connector)
|
Weight
|
1.1Kg
|
Standard accessories: Host, U installation frame, and the power cord, form a complete set screw, specification.
Optional purchase accessories: 1 active antenna (1 m) 2 passive antenna (3 m).
|
