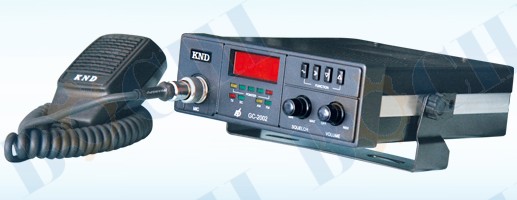

Product Name：GC-2002AM/FM Radio Telephone
Description of the Product：
This device is a marine FM ＆ AM communication device, suitable for marine and terrestrial communications.
It adopts the advanced digital frequency synthesis technology and single-chip computer control technology,
with the function of channel scanning. The luxurious touch button and the clear and bright channel digital
display are easy to use. The aluminum alloy frame ensures that the device is durable. It can achieve a
long-distance call with clear and loud voice, and is a kind of reliable long-distance communication equipment.
Technical Parameters：
General Performance
|
Frequency Range
|
26.065—28.755MHz
|
Frequency Error
|
±10ppm
|
Frequency Interval
|
10KHz
|
Number of Channels
|
240CH
|
Modulation Mode
|
Frequency Modulation (FM)
|
Amplitude Modulation
(AM)
|
Power Supply
|
Power Converter： input DC 24V, output DC18V,
for the whole device
|
Electrical Performance of
the Transmitter
|
Frequency Modulation (FM)
|
Amplitude Modulation
(AM)
|
Output Power
|
20W
|
5W
|
Modulation Limit
|
±3KHz
|
90%
|
Modulation Sensitivity
|
＜10mV
|
Audio Distortion
|
＜8%
|
Power Consumption of
the Transmitter
|
≤3.1A
|
≤2.0A
|
Electrical Performance of
the Receiver
|
Frequency Modulation (FM)
|
Amplitude Modulation
(AM)
|
Usable Sensitivity
|
＜0.35μV（S/N12dB）
|
＜0.5μV（S/N12 dB ）
|
Squelch Opening Sensitivity
|
0.2μV
|
0.28μV
|
Audio Output and Distortion
|
≤10%
|
Static Power Consumption
|
≤0.25A
|
|
