Marine Control Cable

Date:2020-06-19 Click:365 Share to:

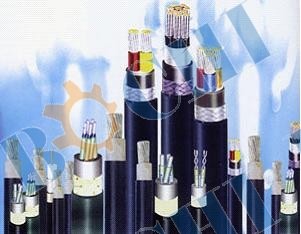

Marine Control Cable

Scope of applications：

The product uses in river sea each kind of ships and the marine petroleum platform and so on

he aquatic building general control device uses.

Standards implemented：

IEC60092-376 or GB9332-88

Model:

Model specifications、Combustion and Rated voltage

Models	Combustion	Core number	Nominal sectional area (mm2)	Rated Voltage (KV)	Temp.℃
CKEF(HV)、CKEF(HV)80、CKEF(HV)90 CKEF(HV)82、CKEF(HV)92	DA SA NA	2-37	0.75-1	0.25	E：85 J：85 V：70
CKVV、CKVV80、CKVV90、CKVV82、CKVV92
CKJV、CKJV80、CKJV90、CKJV82、CKJV92、CKJP82、 CKJVP、CKJVP80、CKJVP90、CKJVP82、CKJVP92
CKEPJ、CKEPJ80、CKEPJ90、CKEPJ85、CKEPJ95、CKEPF CKEPF80、CKEPF90、CKEPF86、CKEPF96、CKJPF CKJPF80(90)、CKJPF86(96)、CKJP86、CKJPFP、CKJPFP80(90) CKJPFP86(96)、CKJ85、CKJ86、CKJPJ、CKJPJ80(90) CKJPJ85(95)、CKJP85、CKJPJP、CKJPJP80(90)、CKJPJP85(95)	SC NSC		0.5-2.5		85

Product descriptions and Codes

Codes	Definition	Codes	Definition
D	Combustion for single cable	A	have smoke acidity and toxicity
S	Combustion for bunched cable	B	low smoke low acidity low toxicity
N	Fire-proof(Combustion for single cable)	C	Halogen free low smoke low toxicity

Codes	Insulation	Codes	Inner- sheath	Codes	Armoring	Codes	Outer sheath	Codes	Characteristic
E	EP-rubber insulated	F	Chlorosul- conation sheath	8	Tinned Cu wire woven	0	NO- Outer sheath	P	Line core screen
J	XLPE Insulation	H	Chlorosul- fonated polyethylene sheath	9	Galva- nizes Steel wire woven	2	Polyvinyl chloride sheath	R	Soft
V	PVC Insulation	V	Polyvinyl -chloride sheath	-	-	5	Cross -linked polyolefin sheath	-	-
X	NR/SBR insulated	PF	Thermosp- lasticity polyolefin sheath	-	-	6	Thermos-plasticity polyolefin sheath	-	-
-	-	PJ	Cross- linked polyolefin sheath	-	-	-	-	-	-
