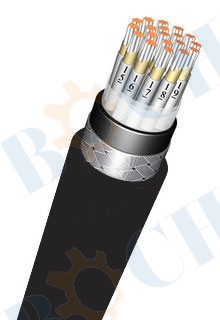

0.6/1KV Shipboard Power Cable
|
|
Type：
|
CJ86/NC
|
Size：
|
7x2.5
|
Voltage：
|
0.6/1KV
|
Application：
|
The cable is intended for fixed installation of power lighting and control system of shipboard and off-shore building.
|
Construction：
|
|
|
1conductor：Tinned stranded copper wire
2insulation：MGT+XLPE
3tape: non-hygroscopic material
4armor：TCWB
5outer sheath：PO
|
|
Standards applied：
|
Construction design：IEC60092-350,353；Conductor：IEC60228 Class2；Insulation：IEC90092-351；Sheath：IEC60092-359；Flame retardent：IEC60332-3-22；Fire resistant：IEC60331；Halogen free：IEC60754；Low smoke：IEC61034
|
Ambient temperature：
|
-30℃-+70℃
|
Core identification：
|
black number on white insulation
|
Sheath colour：
|
black, blue, grey
|
Marks resistance：
|
company name, type, size, voltage, drum no., meter, flammability standard
|
Certificate：
|
ABS、DNV、GL、LR、RINA、CCS、BV、KR、NK
|
Conductor DC：
|
≤7.56Ω/km
|
Conductor structure：
|
7/0.68mm
|
Insulation resistance：
|
20℃:≥785MΩ·km
|
Appro weight：
|
472kg/km
|
Nominal diameter：
|
17±1.5mm
|
|
|
|
|
