Scope of application:
1. Can be used in zone1 and 2 dangerous places.
2. Can be used in II A 、IIB 、IIC,temperature classification from T1 to T6 in explosion gas environment.
3. Can be used in zone 20、21、22；flammable dust atmosphere.
Model implication:

BZX51 Series Explosion-proof Tarvel Switch
Features:
1) aluminum alloy die-casting shape, fine appearance, high voltage static plastic sprayed surface,anti-corrosion.
2) Steel pipe or cable wiring.
3) Conform to GB3836－2000、IEC60079、GB12476.1－2000、IEC61241 standards.
Main technical parameters:
Rated voltage(V)
|
Rated current（A)
|
Number of contact
|
Explosion mark
|
IP rating
|
Inlet thread
|
Cable external diameter（mm）
|
AC220
AC380
|
2
|
One open
Another one close
|
Exd II BT6
Exd II CT6
DIPA20TA,T6
|
IP54
|
G3/4
|
Φ8~Φ13
|

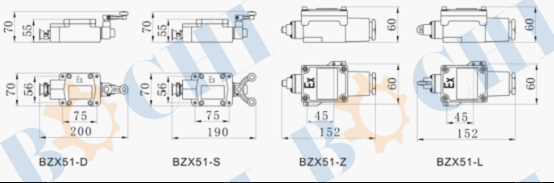

Outline and installation dimensions：
|
