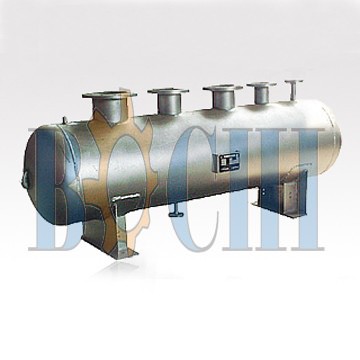

Sub-cylinder
Date:2020-06-17 Click:350 Share to:
Boiler Accessories -- Sub-cylinder
Specifications:
Easy And Safe Operation
Adopt high quality material with advanced welding technology Good looking Hing Quality
The manufacture unit of D1 and D2 Pressure vessel,which has been approved by State Bureau of Quality and Technical Supervision.
It is one of the largest manufacturer of D1and D2Pressure vessel (gas storge tank and Non-standard pressure vessel )at home.
Sub-cylinder Technical parameters
| Model | Working pressure （Mpa） | Working temperature(℃) | Corresponds to the boiler（t/T） | OD×L（mm） | weight(Kg) | Notes |
| Φ219 | 0.8 | 174 | 0.5 | Φ219×1156 | 78 | Can be customized. |
| Φ325 | 1 | 1 | Φ341×1410 | 142 | ||
| Φ350 | 2 | Φ366×1545 | 150 | |||
| Φ500 | 1.3 | 194 | 4 | Φ516×2016 | 325 | |
| Φ600 | 6 | Φ620×2280 | 558.83 | |||
| Φ1000 | 1.6 | 203 | 10 | Φ1028×2828 | 1380.28 |
