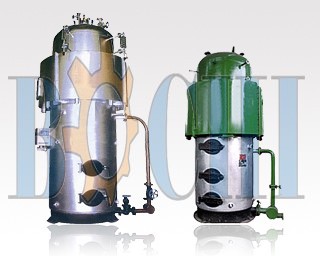

Vertical Coal / Wood fired Energy Saving Boiler

Date:2020-06-16 Click:453 Share to:

LSB-Energy Saving Boiler

LSB-Vertical coal-burning energy conservation steam boiler.Using the most advanced combustion technology,Fuel combustion in the
boiler,Then converted into coal gas.Coal gas is burning again,after the purification,finally discharged into the atmosphere. Is the most
environmentally friendly energy-saving coal-fired boiler.

Boiler Features:

1、Boiler Features

（1）Compact, easy to install migration, small size, less investment.

（2）Full use of heating surface, improving boiler efficiency.

（3）As the flue gas after repeated burning, fully meet the purpose of removing dust.

（4）Water to remove residue to prevent the spread of dust, are the new green products.

LSB0.5-0.4-WⅢ Technical parameter list

Name Type Data

Rated evaporation t/h 0.5

Rated steam pressure MPa 0.4

Rated steam temperature °C 151

Heat transfer area m2 25

Fuel bituminouscoal,anthracite, wood,bran

Boiler weight kg 4100

Dimensions mm 2000×3900

LSB0.5-0.7-WⅢ Technical parameter list

Name Type Data

Rated evaporation t/h 0.5

Rated steam pressure MPa 0.7

Rated steam temperature °C 170

Heat transfer area m2 27

Fuel bituminouscoal,anthracite, wood,bran

Boiler weight kg 4400

Dimensions mm 2000×3900

LSB1-0.4-WⅢ Technical parameter list

Name Type Data

Rated evaporation t/h 1

Rated steam pressure MPa 0.4

Rated steam temperature °C 151

Heat transfer area m2 42

Fuel　 bituminouscoal,anthracite, wood,bran

Boiler weight kg 5300

Dimensions mm 2200×4750

LSB1-0.7-WⅢ Technical parameter list

Name	Type	Data
Rated evaporation	t/h	1
Rated steam pressure	MPa	0.7
Rated steam temperature	°C	170
Heat transfer area	m2	50
Fuel		bituminouscoal,anthracite, wood,bran
Boiler weight	kg	5700
Dimensions	mm	2200×4750
