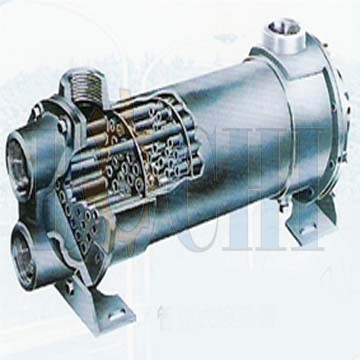

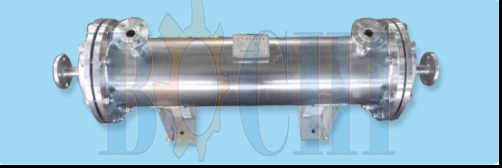

Shell and Tube Heat Exchanger(Tube OD20)
Date:2020-06-16 Click:431 Share to:
| DN(mm) | Tube | Pipe No. | Center row bube No. |
Tube flow area(㎡) | Heat change area(㎡) Heat change pipe length(mm) |
||||
| 1500 | 2000 | 3000 | 4500 | 6000 | |||||
| 159 | 1 | 15 | 5 | 0.0030 | 1.4 | 1.9 | 2.8 | / | / |
| 219 | 1 | 33 | 7 | 0.0066 | 3.1 | 4.1 | 6.2 | / | / |
| 273 | 1 | 65 | 9 | 0.0131 | 6.1 | 8.2 | 12.3 | 18.4 | 24.5 |
| 2 | 56 | 8 | 0.0056 | 5.3 | 7.0 | 10.6 | 15.8 | 21.1 | |
| 325 | 1 | 99 | 11 | 0.0199 | 9.3 | 12.4 | 18.7 | 28.0 | 37.3 |
| 2 | 88 | 10 | 0.0088 | 8.3 | 11.1 | 16.6 | 24.9 | 33.2 | |
| 4 | 68 | 11 | 0.0034 | 6.4 | 8.5 | 12.8 | 19.2 | 25.6 | |
| 400 | 1 | 174 | 14 | 0.0350 | 16.4 | 21.9 | 32.8 | 49.2 | 65.6 |
| 2 | 164 | 15 | 0.0165 | 15.5 | 20.6 | 30.9 | 46.4 | 61.8 | |
| 4 | 146 | 14 | 0.0073 | 13.8 | 18.3 | 27.5 | 41.3 | 55.0 | |
| 450 | 1 | 237 | 17 | 0.0477 | 22.3 | 29.8 | 44.7 | 67.0 | 89.3 |
| 2 | 220 | 16 | 0.0221 | 20.7 | 27.6 | 41.5 | 62.2 | 82.9 | |
| 4 | 200 | 16 | 0.0101 | 18.8 | 25.1 | 37.7 | 56.5 | 75.4 | |
| 500 | 1 | 275 | 19 | 0.0553 | / | 34.6 | 51.8 | 77.8 | 103.7 |
| 2 | 256 | 18 | 0.0257 | / | 37.2 | 48.3 | 72.4 | 96.5 | |
| 4 | 222 | 18 | 0.0112 | / | 27.9 | 41.8 | 62.8 | 83.7 | |
