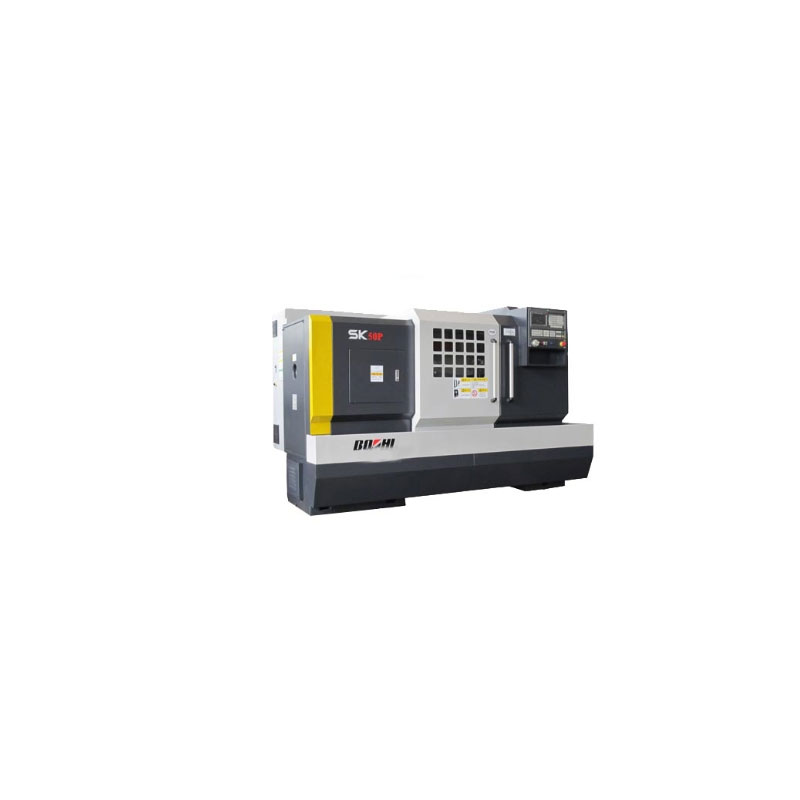

SK40P horizontal CNC lathe

Date:2020-06-12  Click:1176   Share to:

    • product description：
    SK40P horizontal CNC lathe has the characteristics of smooth start, rapid braking and high output torque. It can be used for turning processing of shaft and disc sleeve parts. It can automatically complete the processing of internal and external cylindrical surfaces, arbitrary conical surfaces, arc surfaces, end surfaces, and male and English threads. It is suitable for the processing of many varieties and small and medium-sized batches of products. Sex.
    specifications：
     ITEM  UNIT  SK40P  SK50P
     Maximum turning diameter  on the bed mm  φ400  φ500
     Large swing diameter on bed saddle  mm  φ200  φ280
     zui large turning diameter  mm  φ400/3501  φ500/3501
     Large workpiece length  mm  710/620;960/870;1460/1370  1960/1870;2960/2870
     zui large turning length  mm  570/500;820/750;1320/1250  1820/1750;2820/2750
     Spindle aperture  mm  φ77  φ77
     Spindle speed  r/min  H:162-1620M:66-660L:21-210  H:162-1620M:66-660L:21-210
     Spindle taper    Metric 1:20  Metric 1:20
     Spindle maximum output torque  N.m  800  800
     Screw pitch  X direction: 5Z direction: 6  X direction: 5Z direction: 6
     Tool Holder Capacity    4  6
     Tool table width  mm  162X162  200X200
     Tool holder allows the largest tool cross section  mm×mm  25×25  25×25
     Tailstock sleeve diameter  mm  φ75  φ75
     Taper of tailstock sleeve  MTNo.  MTNo.5  MTNo.5
     Tailstock sleeve maximum travel  mm  150  150
     Main motor  kW  7.5  7.5
     Main drive V-belt    B18294 root  B19054 root
    weight  kg  1500  2150
