BDVL28 vertical lathe
Date:2020-06-12 Click:1201 Share to:
product description：

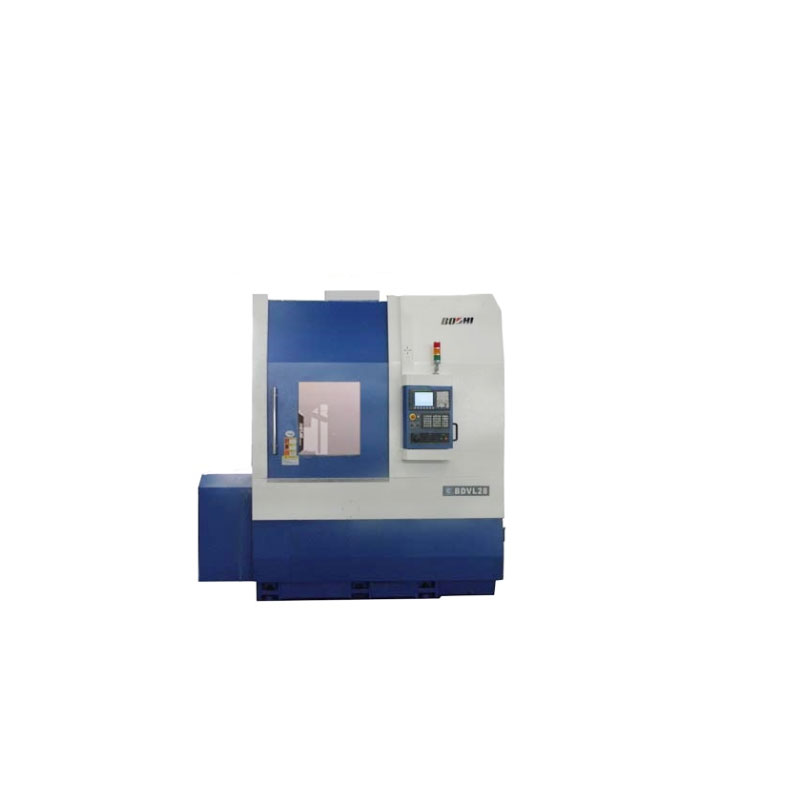

BDVL28 vertical lathe is a full-featured CNC vertical lathe specially developed and designed for turning aluminum alloy wheels in the automotive and motorcycle industries.
BDVL28 features:
1. The high-strength cast iron base has sufficient rigidity, good vibration absorption and thermal stability to meet the needs of high-speed processing.
2. The spindle sleeve adopts symmetrical and hanging design, which can better eliminate the influence of thermal deformation on the machining accuracy.
3. Equipped with Taiwan Liuxin vertical 6-station servo tool holder, high rigidity, fast and reliable tool change, can meet the rigidity required by the tool, and effectively improve the surface quality of the workpiece.
4. Large flow cooling system can quickly take away the heat generated during the processing of parts.
5. Especially for the large amount of long-rolled aluminum chips generated during the processing of the hub, the developed large-angle large-opening base, progressive chip removal system, water curtain and chip flushing system make the machine tool chip removal smoother.
6. Special internal protection design can closely protect the moving parts of the machine tool, ensure the reliability of the machine tool and extend the service life of the machine tool.
7. Fully reliable protection, which can effectively prevent swarf and coolant splash leakage, safe and environmentally friendly.
specifications：
specifications：
| Item | unit | Specification |
| zui large slewing diameter | mm | Φ800 |
| zui large turning diameter | mm | Φ800 |
| zui large turning height | mm | 650 |
| Hydraulic chuck diameter | mm | Zhongshi 21″ |
| Spindle head type | A2-11 | |
| Spindle bearing diameter | mm | 180/160 (front/rear) |
| Spindle speed | rpm | 200-1600 |
| main motor power | Kw | 37/45 |
| Spindle maximum torque | Nm | 515 |
| Stroke (X/Z) | mm | 650/650 |
| Fast moving speed (X/Z) | m/min | 14/14 |
| Servo motor (X/Z) | β22i/β22i | |
| Servo motor torque (X/Z) | Nm | 22/22 |
| Servo motor power (X/Z) | Kw | 4.0/4.0 |
| Ball screw diameter lead (X/Z) | mm | Φ50X10/Φ50X10 |
| Linear rail width (X/Z) | mm | 45/55 |
| Number of knives | Vertical 6 station | |
| Tool size (turning/boring) | mm | 32X32/Φ12～Φ50 |
| power supply | kVA | 50 |
| Volume (length X width X height) | mm | 3352X2870X3195 |
| weight | kg | 13500 |
