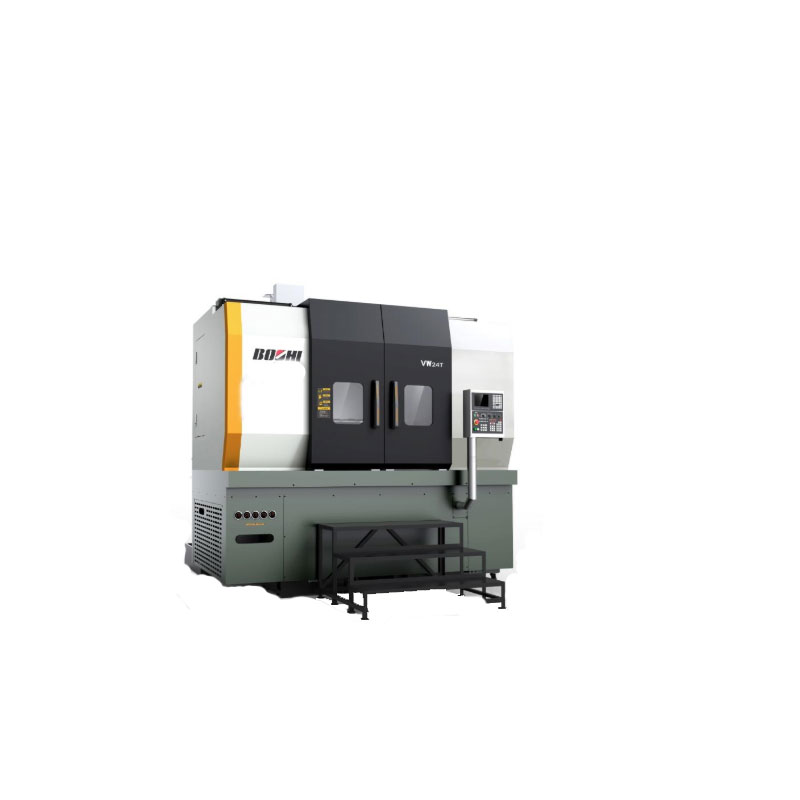

VW24T CNC Vertical Double Tool Holder Lathe
Date:2020-06-12 Click:1142 Share to:
product description：
The VW24T CNC vertical double-turret lathe is an efficient machine tool developed for the machining of automobile wheels. The machine tool has a single-spindle dual-tool holder controlled by a dual-channel CNC system. Two six-station servo tool holders can independently set and feed each tool. The two tool holders can simultaneously process the inner and outer rings of the hub, which is flexible and versatile. Strong; one set of control controls two sets of feed, high processing efficiency, small footprint.
Structural features:
Vertical structure, smooth chip evacuation and convenient workpiece clamping;
High-strength cast iron base and column, good shock absorption and excellent accuracy retention;
The main shaft adopts a sleeve structure, the sleeve adopts a symmetrical and suspension design, a high-rigidity main shaft, a low-speed high-torque main shaft motor, and the main shaft is lubricated with imported high-grade grease, which is fully enclosed and maintenance-free;
Equipped with six-station servo tool holder, high rigidity, fast and reliable tool change; Cooling water tank is separated, easy to move and clean;
Fully enclosed protection, safe, reliable and environmentally friendly;
Centralized machine tool operation panel, easy and fast operation;
All units of measurement conform to the International System of Units (SI).
specifications：
| Item | unit | Specification |
| Maximum swing diameter | mm | Φ870 |
| Turning diameter on bed saddle | mm | Φ700 |
| Maximum workpiece length | mm | 450 |
| Maximum turning hub diameter | Inch | 26″（610mm） |
| Maximum turning wheel height | Inch | 14″（356mm） |
| Hydraulic chuck diameter | Inch | Zhongshi 21″ (optional) |
| Spindle head type | A2-11 | |
| Spindle bearing diameter | mm | 180/160 (front/rear) |
| Spindle speed | rpm | 20-2000 |
| Spindle power | Kw | 45/55 |
| Stroke (X1X2/Z1Z2) | mm | 520/550 |
| Fast moving speed (X1X2/Z1Z2) | m/min | 24/24 |
| Servo motor (X1X2/Z1Z2) | α30iF/α30iF | |
| Servo motor torque (X1X2/Z1Z2) | Nm | 30/30 |
| Servo motor power (X1X2/Z1Z2) | kW | 7/7 |
| Ball screw diameter lead (X1X2/Z1Z2) | mm | Φ50x8/Φ50x8 |
| Number of knives | Horizontal 6-station servo | |
| Tool size (turning/boring) | mm | 32x32/Φ50 |
| power supply | kVA | 85 |
| Volume (length X width X height) | cm | 3400X4700X3365 |
| Net weight/total weight of main machine | kg | About 16000/17000 |
