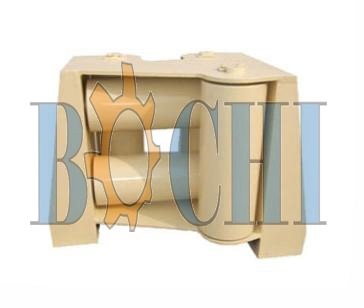

Five Roller Fairlead(B)

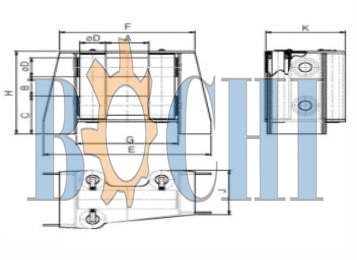

Five Roller Fairlead(B) Drawing
Main Dimensions
|
Product No.
|
a
(mm)
|
b
(mm)
|
c
(mm)
|
d
(mm)
|
e
(mm)
|
f
(mm)
|
g
(mm)
|
h
(mm)
|
i
(mm)
|
k
(mm)
|
l
(mm)
|
m
(mm)
|
|
|
BMMMERFI-B001
|
180
|
100
|
253
|
80
|
446
|
700
|
10
|
510
|
125
|
170
|
356
|
356
|
BMMMERFI-B002
|
230
|
130
|
308
|
100
|
546
|
900
|
10
|
625
|
150
|
210
|
446
|
446
|
BMMMERFI-B003
|
250
|
130
|
363
|
120
|
626
|
1000
|
15
|
710
|
175
|
250
|
506
|
506
|
BMMMERFI-B004
|
280
|
160
|
423
|
140
|
716
|
1100
|
20
|
825
|
215
|
288
|
576
|
576
|
BMMMERFI-B005
|
300
|
160
|
518
|
180
|
836
|
1300
|
25
|
975
|
260
|
366
|
676
|
676
|
BMMMERFI-B006
|
320
|
180
|
660
|
245
|
1030
|
1450
|
35
|
1200
|
335
|
500
|
830
|
830
|
BMMMERFI-B007
|
400
|
250
|
788
|
300
|
1236
|
1800
|
45
|
1465
|
405
|
608
|
1016
|
1016
|
Product No.
|
Rated
Towing
Pull
|
Rope
Φ
|
Breaking
Strength
of Wire
|
Wire
Size
(mm)
|
Weight
KG
|
BMMMERFI-B001
|
20KN
|
-12mm
|
150KN
|
12
|
125
|
BMMMERFI-B002
|
30KN
|
-16mm
|
220KN
|
16
|
160
|
BMMMERFI-B003
|
50KN
|
-20mm
|
350KN
|
20
|
400
|
BMMMERFI-B004
|
80KN
|
-24mm
|
500KN
|
24
|
750
|
BMMMERFI-B005
|
120KN
|
-32mm
|
800KN
|
32
|
860
|
BMMMERFI-B006
|
200KN
|
-40mm
|
1150KN
|
40
|
1550
|
BMMMERFI-B007
|
320KN
|
-48mm
|
1750KN
|
48
|
2700
|
|
