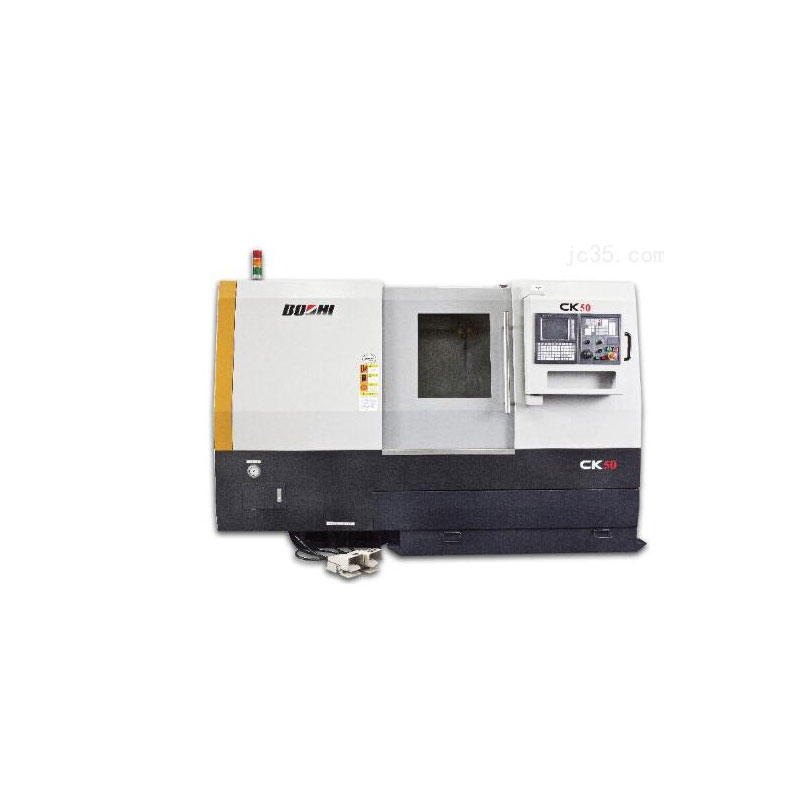

CK50 high precision CNC lathe

Date:2020-06-12 Click:1271 Share to:

product description：
CK50 high precision CNC lathe is a high precision, high performance ratio machine tool. The machine tool adopts high-strength cast iron bed base structure, inclined guide rail, high-precision through-hole spindle structure, and good seismic performance. The machine tool is equipped with a multi-station turret tool post, and the tool change is nearby. The machine is equipped with FANUC Oi mate CNC system. The design of the machine tool is novel, the operation of the panel is convenient, and it is fully enclosed and protected. This high precision CNC lathe is suitable for semi-finishing and finishing of small and medium parts.

specifications：

ITEM	UNIT	CK50
Maximum swing diameter on the bed	mm	520
Maximum turning diameter on the saddle	mm	450
Maximum turning diameter of carriage	mm	300
Spindle speed	r/min	10-2000
Spindle through hole diameter	mm	86
Spindle head type		A2-8
main motor power	kw	11/15 servo motor
Chuck diameter	mm	250
Center distance	mm	1000/1500/2000
Tailstock-Sleeve Diameter	mm	75
Tailstock-sleeve stroke	mm	150
Taper		MT5
X/Z axis moving distance	mm	260/1000
X/Z fast moving speed	mm	6/8
Total number of tool holders		4 (six stations)
Knife size	mm	25×25
X/Z axis repeated positioning precision	mm	0.005/0.007
power supply		380V50HZ
Dimensions (LXWXH)	cm	275×145×155
weight	KG	3200
