CK7530 slant bed CNC lathe

Date:2020-06-12 Click:1238 Share to:

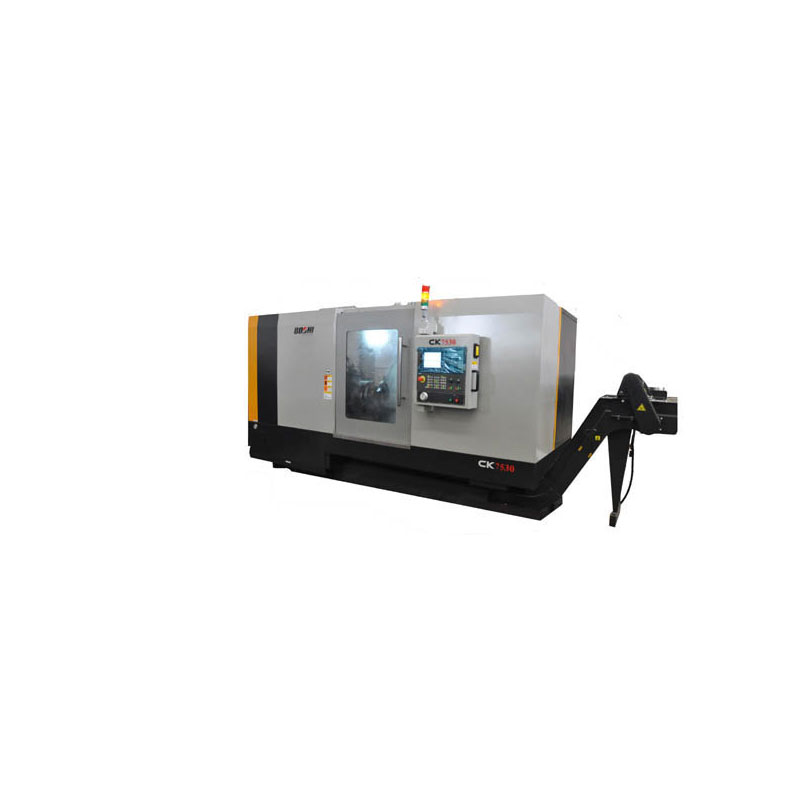

CK7350 CNC lathe is a full-featured CNC lathe specially developed and designed for the turning of aluminum alloy wheels in the automotive and motorcycle industries. This machine tool can perform high-precision machining on the internal and external rotation contours of 12"~22" wheels. The main body of the machine tool adopts high-strength cast iron structure, and the key components are subjected to finite element stress analysis. The whole machine has high rigidity and high-speed machining stability.

Item	unit	Electric knife holder	Hydraulic knife holder
Large swing diameter on the bed/saddle	mm	Φ670/Φ470	Φ670/Φ470
zui large turning length	mm	1500	1500
zui large turning diameter	mm	Φ600	Φ550
zui large bar diameter	mm	Φ90	Φ90
Hydraulic chuck diameter	mm	Φ305	Φ305
Spindle head type	GB5900.1	A2-8	A2-8
Spindle through hole diameter	mm	Φ105	Φ105
Spindle bearing diameter (front/rear)	mm	Φ140/Φ130	Φ140/Φ130
Spindle speed	r/min	25-2500	25-2500
Main motor power (continuous/30 minutes)	kW	22/30	22/30
Sleeve diameter/stroke	mm	Φ110/Φ150	Φ110/Φ150
*Taper (standard/active spindle structure)	MT No.	6/5	6/5
slope	DEG	60°	60°
Travel distance X/Z	mm	325/1550	305/1550
Fast moving speed X/Zm	m/min	12/16	12/16
Number of knives		12/22	12/22
Tool size (turning/boring)	mm	25×25/Φ40	25×25/Φ32
power supply	kVA	60	60
Volume (length × width × height)	mm	4830X2100X2180	4830X2100X2180
total weight	kg	9730	9730
