Double Cruciform Bollard

Double Cruciform Bollard

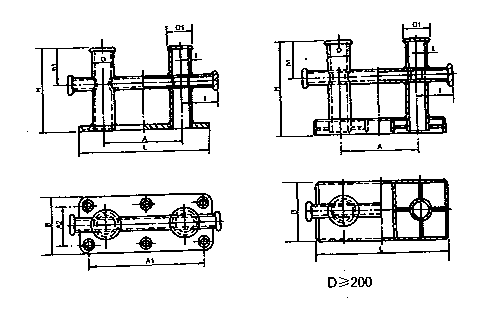

Double Cruciform Bollard Drawing

Product No.

Nominal Dia.(mm)

Dimension(mm)

Wire Rope Dia.(mm)

D

D1

H

A

B

L

t

Weight(kg)

BMDM-DCB001

50

50

65

190

180

130

310

6

7

8.7

BMDM-DCB002

75

75

95

290

275

170

450

7

16

11.5

BMDM-DCB003

100

100

120

350

350

200

550

7

27

13.5

BMDM-DCB004

125

125

145

425

425

240

660

9

49

15.5

BMDM-DCB005

150

150

170

500

500

270

770

9

71

17.5

BMDM-DCB006

175

175

200

550

530

320

850

10

103

19.5

BMDM-DCB007

200

200

225

795

600

360

960

12

181

22.5

BMDM-DCB008

250

225

280

855

750

450

1200

14

310

26

BMDM-DCB009

300

250

330

1160

900

540

1440

16

576

30.5
