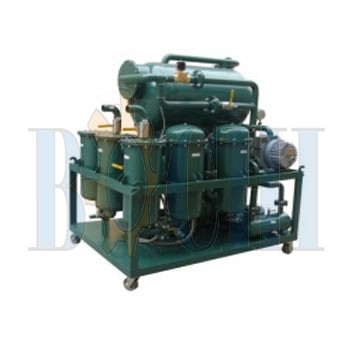

Double Stage High Efficiency Vacuum Oil Filter

Date:2020-06-12 Click:427 Share to:

1. Our products BMMAMDVOF Series are special designing for purifying transformer oil. It can dewater, degas by vacuum, and purify impurities by filter system. And it will make cleanliness of oil up to NAS 6, water content <5PPM. This machine could protect the safety of transformer.

2. Features

1. Automatic back flushing system. Avoiding the trouble of hand washing and the damage to filter element.

2. The advanced low temperature separated oil and water technology from Japan can purify the molecular water in oil.

3. The Japanese macromolecule magnetic filter element can purify the impurities efficiently without any additive. Impurities in purified oil is <5 μm. And the cleanliness is above NAS6.

4. The heating system is made from aero materials. It guarantees the balanced heating. You can control the oil temperature between 0~80'C as you wish. No carbonization.

5. The combination of coalescing separation and vacuum duplex 3D stereo-evaporation, eliminating water. Liquid water content will <5 PPM, and breakdown voltage will achieve 65KV after purified.

6. A trio of automatic interlocked preventive device. It can run online 200 hours above.

7. We can design explosion preventive machines with your request. The degree of explosive prevention can achieve dIIBT4, even dIICT4.

Item	Unit	BMMAMDVOF-50	BMMAMDVOF-80	BMMAMDVOF-100	BMMAMDVOF-150	BMMAMDVOF-200	BMMAMDVOF-300
Flow capacity	L/H	3000	4800	6000	9000	12000	18000
Working vacuity	Mpa	-0.06 ～ -0.099
Working pressure	Mpa	≤0.4
Temperature range	℃	Normal temperature～100
Power		3PH 50HZ 380V
Heating efficiency	KW	36	48	60	72	84	120
Total efficiency	KW	39	51	64	89	90	130
Inlet&Outlet diameter	mm	32	32	40	50	50	65
Weight	kg	500	580	750	800	900	1300
