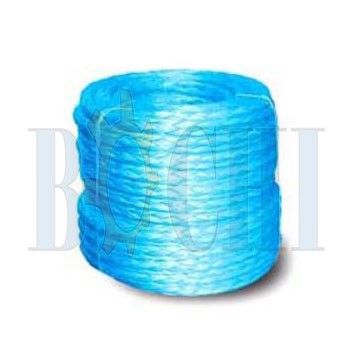

Dyneema Rope( UHMWPE fiber Rope)
Product No.
|
Size
|
8-Strand
|
12-srand
|
Dia mm
|
Cir inch
|
Weight (G/M)
|
MBL (Ton)
|
Weight (G/M)
|
MBL Ton
|
BMMMEMRDY-001
|
6
|
3/4
|
14.1
|
2.45
|
18.3
|
3.19
|
BMMMEMRDY-002
|
8
|
1
|
24
|
4.08
|
34.2
|
5.9
|
BMMMEMRDY-003
|
10
|
1-1/4
|
37.8
|
6.38
|
55
|
9.3
|
BMMMEMRDY-004
|
12
|
1-1/2
|
55.2
|
9.08
|
83
|
13.8
|
BMMMEMRDY-005
|
14
|
1-3/4
|
77.5
|
12.7
|
110
|
18.1
|
BMMMEMRDY-006
|
16
|
2
|
100
|
16.1
|
130
|
21.1
|
BMMMEMRDY-007
|
18
|
2-1/4
|
128
|
20.6
|
184
|
29.6
|
BMMMEMRDY-008
|
20
|
2-1/2
|
160
|
25.7
|
227
|
35.3
|
BMMMEMRDY-009
|
24
|
3
|
230
|
36.8
|
324
|
49
|
BMMMEMRDY-010
|
28
|
3-1/2
|
332
|
52
|
444
|
64.7
|
BMMMEMRDY-011
|
32
|
4
|
419
|
64.6
|
589
|
84.3
|
BMMMEMRDY-012
|
36
|
4-1/2
|
534
|
80.6
|
720
|
101
|
BMMMEMRDY-013
|
40
|
5
|
672
|
99.3
|
880
|
122
|
BMMMEMRDY-014
|
44
|
5-1/2
|
810
|
117
|
1078
|
146
|
BMMMEMRDY-015
|
48
|
6
|
960
|
136
|
1264
|
166
|
BMMMEMRDY-016
|
56
|
7
|
1305
|
180
|
1760
|
226
|
BMMMEMRDY-017
|
64
|
8
|
1690
|
228
|
2260
|
284
|
BMMMEMRDY-018
|
72
|
9
|
2151
|
282
|
2910
|
358
|
BMMMEMRDY-019
|
80
|
10
|
2672
|
345
|
3530
|
425
|
BMMMEMRDY-020
|
88
|
11
|
3240
|
411
|
4240
|
502
|
BMMMEMRDY-021
|
96
|
12
|
3822
|
472
|
4990
|
581
|
BMMMEMRDY-022
|
104
|
13
|
4536
|
550
|
6040
|
691
|
1 ton= 9.8kn 1 dan=0.01kn 1Ktex=1g/m
|
Description: With DSM Dyneema fiber that made Dyneema rope or UHMWPE fiber Rope.It's the strongest Fiber in the word and considered as Wire rope replacement of the same diameter.Constructure can be 8 and 12-Strand .
Applications: The rope has been succeed applied in the fields like harbor towing, Mooring line for VLCC and large Bulk Carrier, heavy Slings and other industrial and heavy marine applications.
Specific gravity :0.97,floating on water .Low elongation that is close to SWR. Light weight :1/8 of the weight og SWR With the same strength.Melting point : 165℃.Excellent resistance to tension-tention fatigue ,benging fatigue ,UV ageing and chemical erosion.
Remarks for this rope:
1.Rope data in the table refer to ropes With medium braiding /twisting level.
2.Rope weight in the table refers to that o fropes Without coating and the allowance is 5%.After coating the weight will be increased by 10%-15%,depending on the amount of resin applied.
3.Ropes With specifications not listed in the above table can also be designed and maufactured according to customer's requirement.
4. When Ordering,please specify whether eyes should be spliced on one or both ends of the ropes, and if the eyes should be covered With canvas , PVC or With thimble.
5 .Certificates:CCS,ABS,BV,NK,GL,LR,DNV,SR etc are provided when requiring."
|
