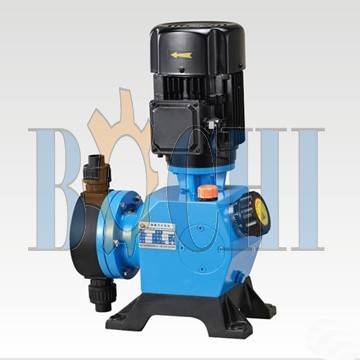

JMZ Mechanical Diaphragm Metering Pump

Product Description
Flow:0-560 lph
Pressure: 0-5 Bar
Power: 550W, 380V / 400V/110V , 50/60Hz
Drive System: two and three phase motor, Anti-explosion motor,Frequency conversion motor
Protection Degree: IP55
Flow Control: Manual operation, Automatic

Material
Pump head: SUS304, SUS316, PVC, PTEF
Diaphragm: PTFE
Valve: SUS304, SUS316, PVC, PTEF
Valve ball: ZrO2, SUS304, SUS316, Ceramic

Work Condition
Envitonment temperature: -30℃--- 60℃

Package
Material:
Measurement:
Gross Weight:

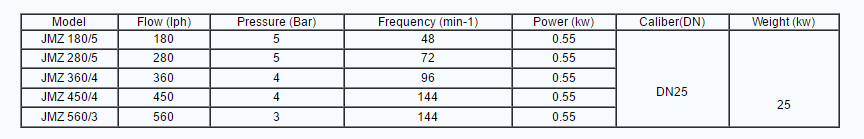

Technical Parameter

Features
1.Very high safety of operation. Mechanical actuate diaphragm. Changeable eccentric drive
2.Power off seal,no leakage,with security delivery device,simple maintance
3.It can transport high-viscosity mediums, corrosive liquid and dangerous chemical goods.
4.The flow can be controlled via adjusting the length of stroke or the motor frequency.
5.The diaghragm is made from multilayer complex structure to promote the life span, the first layer is Teflon anti-acid diaphragm, the second is EPDM stretch rubber, the third is 3.00 mm thick SUS304 that supporting the iron corn. The fourth is also the EPDM stretch rubber to cover all of the body.
