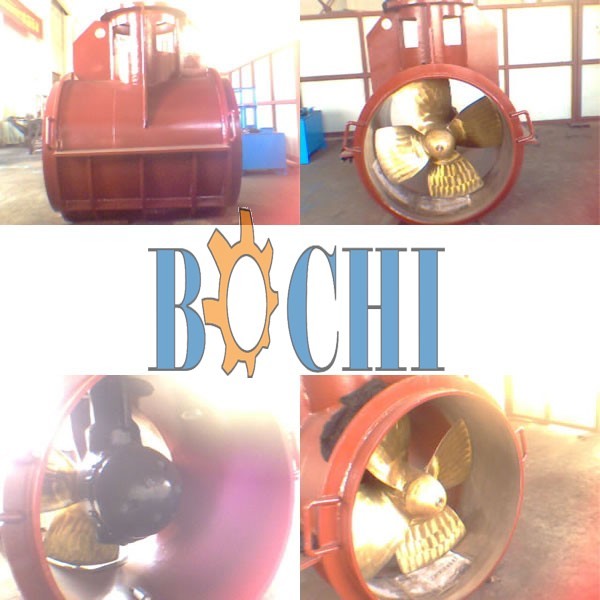

Fixed pitch propeller Marine bow thruster

Date:2020-06-09  Click:281   Share to:

Fixed pitch propeller Marine bow thruster                                    TYPE BMMPPG01FP BMMPPG06FP BMMPPG11FP Speed min-1 1480 1170 1480 1170 1480 1170 Frequency Hz 50 60 50 60 50 60 Power kW 65 50 125 100 200 200 Nominal thrust KN 9.7 8 17.8 14.8 29 29 Length mm 600 700 850 thickness mm 13 13 15 Diameter mm 400~550 550~700 700~900 Weight KG 320 450 750 TYPE BMMPPG16FP BMMPPG17FP BMMPPG20FP Speed min-1 1480 1170 1770 1480 1480 1170 Frequency Hz 50 60 60 50 50 60 Power kW 250 250 315 315 350 250 Nominal thrust KN 42 42 44.5 44.5 51 43 Length mm 1045 1500 1500 thickness mm 15 20 20 Diameter mm 700~900 900~1100 1100~1300 Weight KG 750 1500 1530 TYPE BMMPPG30FP BMMPPG33FP BMMPPG55FP BMMPPG101FP Speed min-1 1780 1480 1480 1180 1480 1180 1780 970 Frequency Hz 60 50 50 60 50 60 60 50 Power kW 500 500 500 450 900 735 1250 1000 Nominal thrust KN 70 70 84 73 125 107 183 155 Length mm 1500 1500 1500 2000 thickness mm 20 20 25 30 Diameter mm 1250~1450 1450~1600 1600~1800 1800~2150 Weight about KG 2500 2700 5450 8650                                                             L-Drive Tunnel Thrusters Z-Drive Thrusters Blade size selection Power selection Hydraulic System selection
