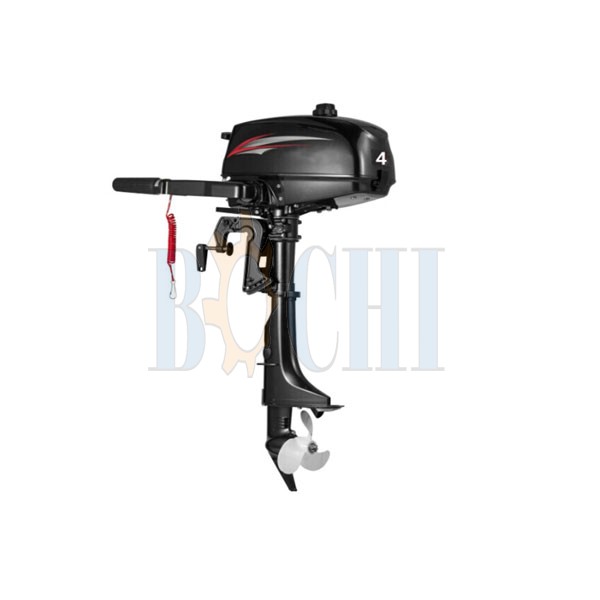

Specification and Pictures:
Model
|
HD４F
|
Power
|
４hp (2.94 kw)
|
Speed
|
4200-5300
|
Stroke
|
2
|
No. of Cylinder
|
1
|
Displacement(cc)
|
74.6
|
Bore x Stroke(mm)
|
47*43
|
Length x Width x Height(mm)
|
550*200*968
|
Weight(kg)
|
13kg
|
Gear Ratio
|
27:13
|
Gear Position
|
F-N-R
|
Ignition System
|
CDI
|
Cooling System
|
Water cooled
|
Starting System
|
Manual Start
|
Control System
|
Tiller control
|
Fuel Tank Volume(L)
|
1.4
|

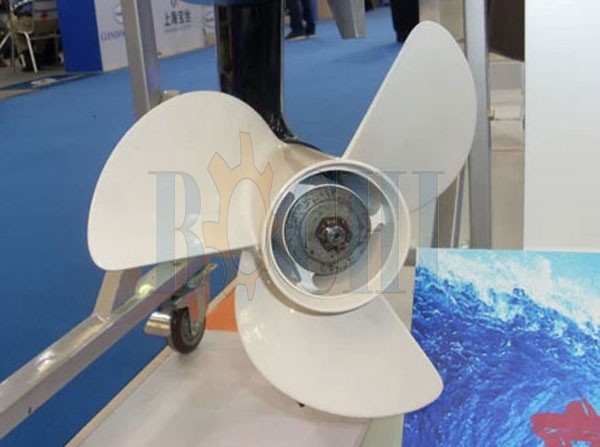

Propeller Size
|
7.4*6
|
fuel consumption
|
|
BOCHI Marine Equipment Department is a total solution provider with his head office in Chongqing Bochi Machinery Import and Export Co.,ltd.we are able to provide value added services and qualified marine equipments.

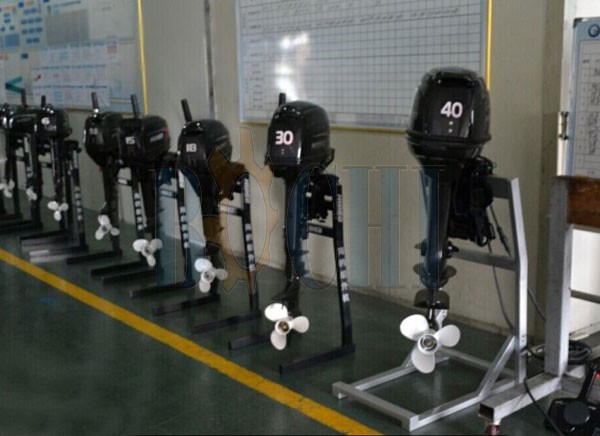

Outboard motor is one of our main products, Including diesel outboard motor, gasoline outboard motor, Electric propulsion outboard motor and some small trolling motor. Power varied from 2 hp to 90 hp, and we also can supplied other famous brand outboard motor like Yamaha, suzuki and so on.
Describtion:

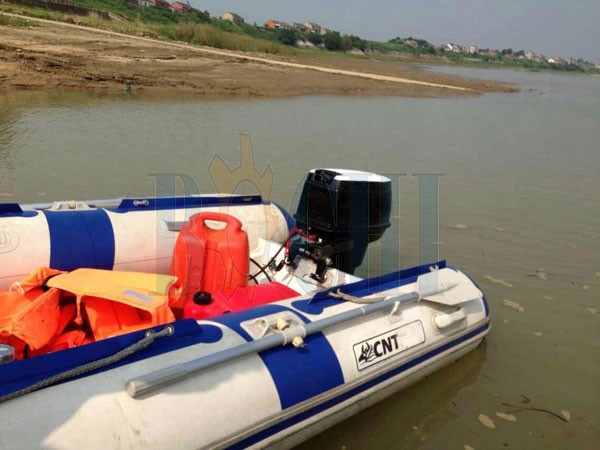

1.The outboard motor is fit for fiberglass boat, inflatable boat, aluminum boat and other sail boat,fishing boat.
2.CDI ignition system makes the outboard motor start easier
3. some parts for free with every motor
4.Long term reliability
5.Durable , High performance, reasonable fuel consumption , easy for service
Cetification: CE , ISO
Note: Please use it as the operating manual, especially if you never use a outboard motor before.
Any questions, you can conatct us for more details.
|
