Pipe Section Bend

Date:2020-06-03 Click:733 Share to:

Pipe Section Bend

It is a non-combustible stone wool pipe section bend for thermal and condensation insulation of pipework in buildings and ships.

It has a reinforced aluminium foil facing and tape in the longitudinal seam which prevents condensation.

Factory produced bends are a very good and fast insulation solution for pipe elbows.

Product No.	BMMDEDPPB001
Dimension	Dimensions
	Thickness	Inner Diameter
	20 - 50 mm	22 - 114
Fire properties	Reaction to Fire
	Essential characteristics	Performance
	Reaction to Fire	A2L - s1, d0
	Other Fire Properties
	Description	Value
	Combustibility	Base product non-combustible
Thermal properties	Thermal Resistance
	Essential characteristics	Performance
	Thermal Conductivity (declared) in 10 °C, λ10	0.034 W/mK
	Thermal Conductivity (declared) in 50 °C, λ50	0.037 W/mK
	Thermal Conductivity (declared) in 100 °C, λ100	0.044 W/mK
Moisture properties	Water Permeability
	Essential characteristics	Performance
	Water Absorption	≤ 1 kg/m²
	Water Vapour Permeability
	Essential characteristics	Performance
	Water Vapour Diffusion Resistance	MV2

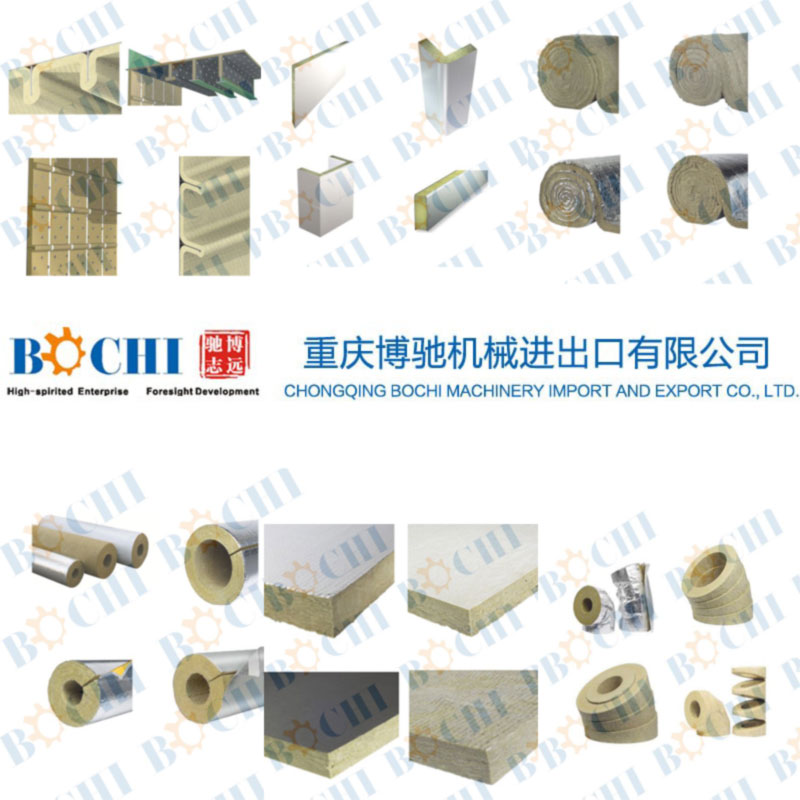

All Material Provided

BOCHI Marine/Ship Equipment Department is a total solution provider with his head office in Chongqing Bochi Machinery Import and Export Co.,ltd.we are able to provide value added services and qualified marine equipments.it includes：Marine Galley Equipment: (electric heating equipment,kitchen processing equipment,refrigeration equipment,laundry facilities,stainless steel kitchenware,air curtains,trash can,SS exhaust hood,sanitary equipment)Marine Furniture;(marine chair and seat,marine desk and table,marine cabinets,others)Paneling&Covering System:(partial wall panel,ceiling,floor,fireproof panel,moisture-proof panel,corner system,covering system,marine coating),etc.
