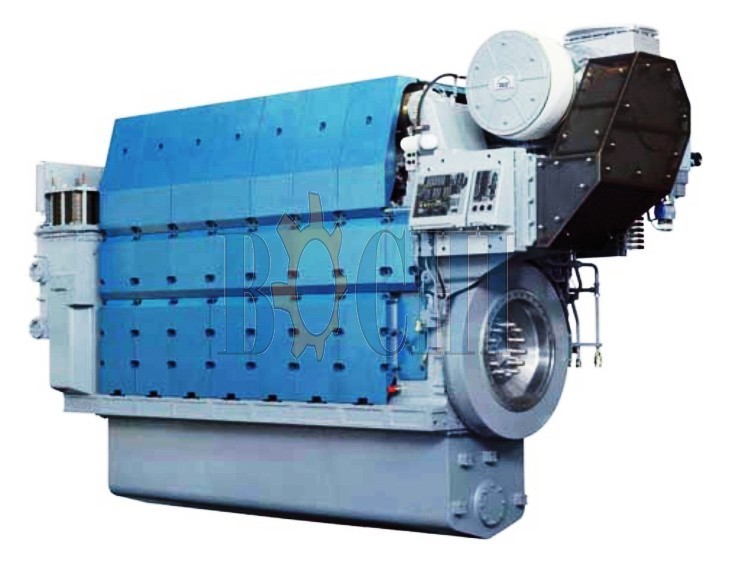

Large Marine Diesel Engine M Series
|
|
Product No.
|
BMMPP-DM M001
|
BMMPP-DM M002
|
BMMPP-DM M003
|
Rated Power(kw)
|
2040/2190
|
2720/2920
|
3060/3285
|
Rated Speed(rpm)
|
800
|
802
|
803
|
Bore(mm)
|
270
|
272
|
273
|
Stroke(mm)
|
380
|
382
|
383
|
Mean Piston Speed(m/s)
|
9.5/10.1
|
9.5/10.3
|
9.5/10.4
|
Mean eff. Pressure(bar)
|
23.5/25.15
|
23.5/25.17
|
23.5/25.18
|
Max Combustion Pressure(bar)
|
190
|
192
|
193
|
Spec. Fuel Oil Consumption(g/kWh)
|
185
|
187
|
188
|
Spec. Lub Oil Consumption(g/kWh)
|
0.8
|
2.8
|
3.8
|
Dimension(L*W*H)(mm)
|
5070*2035*3595
|
5960*2035*3565
|
6405*2035*3565
|
Engine Weight(ton)
|
294-551
|
36
|
39.5
|
* We supply all kinds of marine diesel engine
* It is also available for us to design solutions for power system
* All products available approved by ABS,BV,CCS,DNV,GL,LR,NK,etc.,
Certificated of Quality System ISO9001:2000
* Pls contact us for more details |
|
|
|
|
