Product No.
|
LB8250ZLC
|
LB8250ZLC-1
|
LB8250ZLC-2
|
LB8250ZLC-3
|
LB8250ZLC-4
|
LB8250ZLC-5
|
LB8250ZLC-6
|
LB8250ZLC-7
|
LB8250ZLCz
|
LB8250ZLCz-1
|
LB8250ZLCz-2
|
LB8250ZLCz-3
|
LB8250ZLCz-4
|
LB8250ZLCz-5
|
LB8250ZLCz-6
|
LB8250ZLCz-7
|
Type
|
in-line direct injection、exhaust turbocharged、4 stroke、Air inter cooling、irreversible
|
Cylinder
|
8
|
Bore/Stroke (mm)
|
250/320
|
Rated Speed (r/min)
|
600
|
750
|
700
|
650
|
750
|
Continuous output (kW)
|
882
|
1103
|
1177
|
1030
|
735
|
1213
|
1324
|
1470
|
Resolution per hour power per hour
|
620/970
|
774/1213
|
774/1295
|
723/1133
|
671/809
|
774/1334
|
774/1456
|
774/1618
|
Mean Effective Pressure (Mpa)
|
1.405
|
1.405
|
1.498
|
1.405
|
1.08
|
1.544
|
1.686
|
1.872
|
Piston Average Speed (m/s)
|
6.4
|
8
|
7.47
|
6.9
|
8
|
Minimumsteady speedunder load(r/min)
|
240
|
300
|
280
|
260
|
300
|
Spec. Fuel Oil Consumption (g/kW.h)
|
198
|
Spec. Lub Oil Consumption (g/kW.h)
|
1
|
Rotation direction of crankshaft
|
The left machine resolves right, the right machine resolves right .To look from the flywheel side to the free side, to turn right is clockwise.
|
The left machine resolves left, the right machine resolves left. To look from the flywheel side to the free side, to turn left is counter-clockwise.
|
Starting method
|
Compress air motor starting
|
Cooling method
|
Close circuit water cooling
|
Lubricating method
|
Pressure lubrication
|
Height of lifting position Crankshaft （mm）
|
2010
|

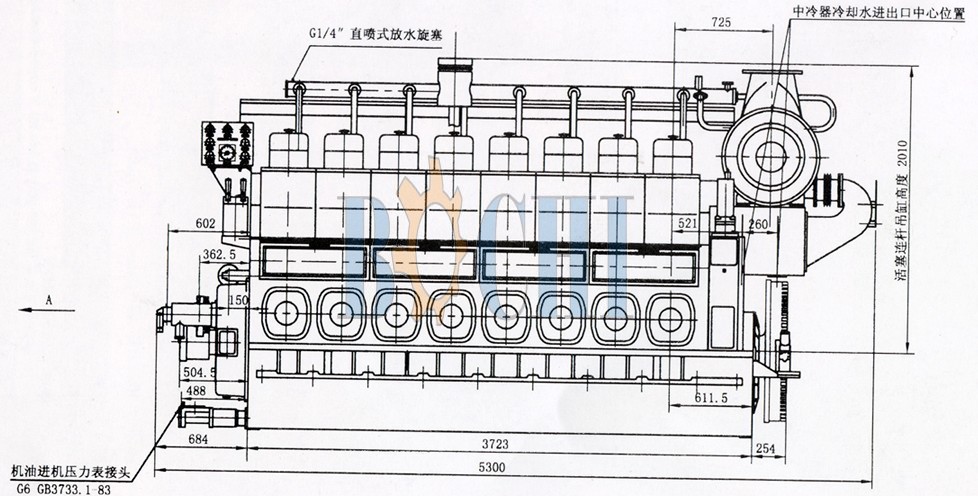

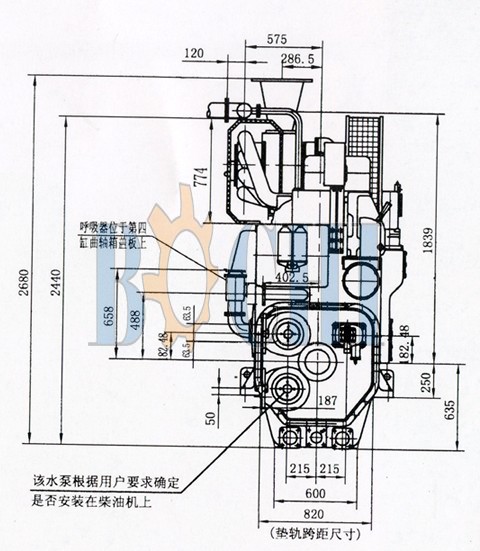

Dimension （mm）
|
5300×1500×2680
|
Net Weight （kg）
|
17900
|
